1.Nginx代理服务概述

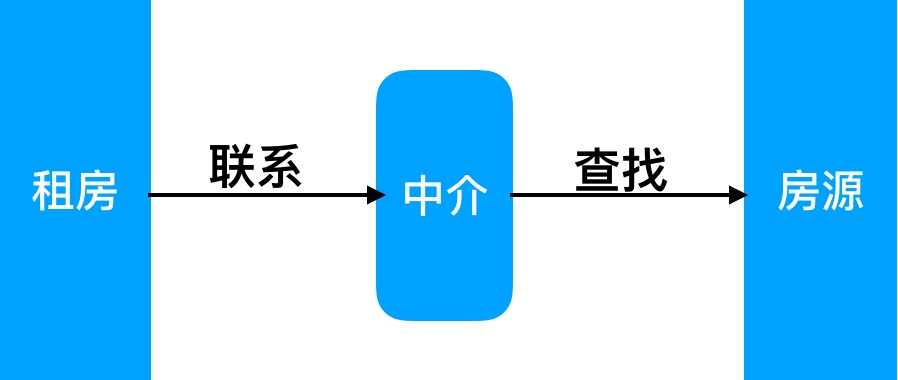

代理我们往往并不陌生, 该服务我们常常用到如(代理租房、代理收货等等)

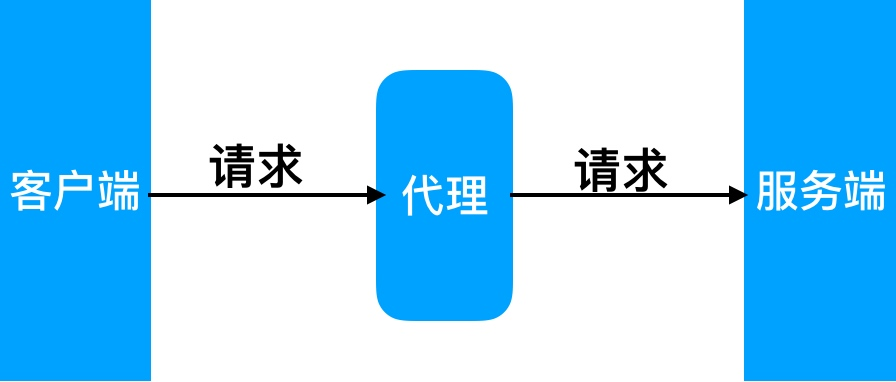

那么在互联网请求里面, 客户端无法直接向服务端发起请求, 那么就需要用到代理服务, 来实现客户端和服务通信

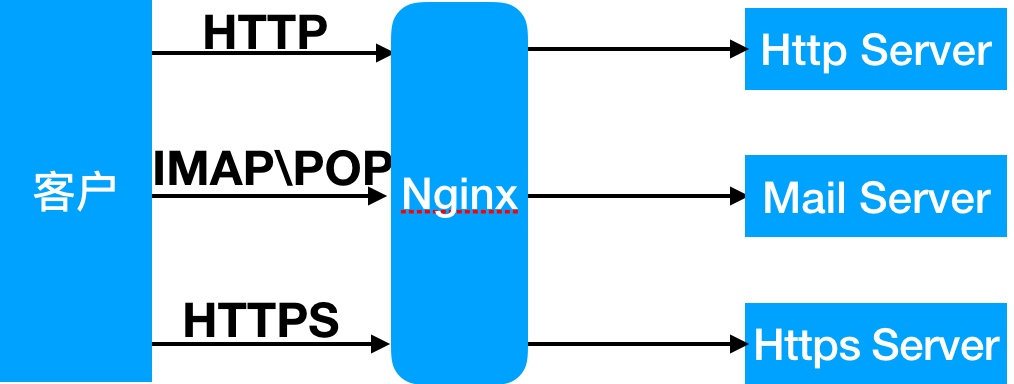

Nginx作为代理服务可以实现很多的协议代理, 我们主要以http代理为主

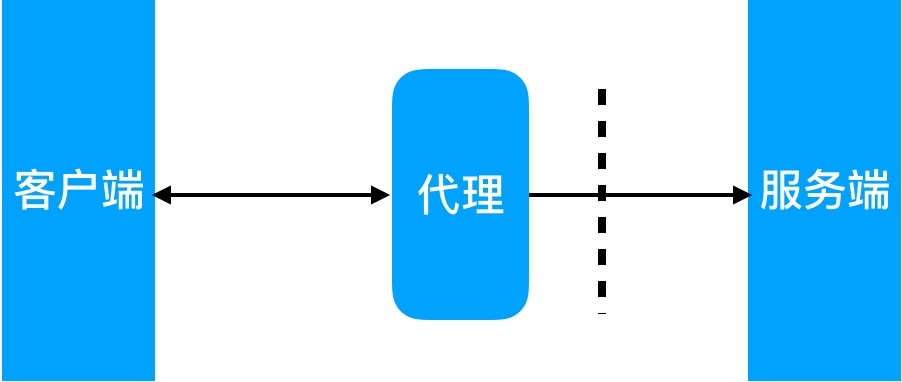

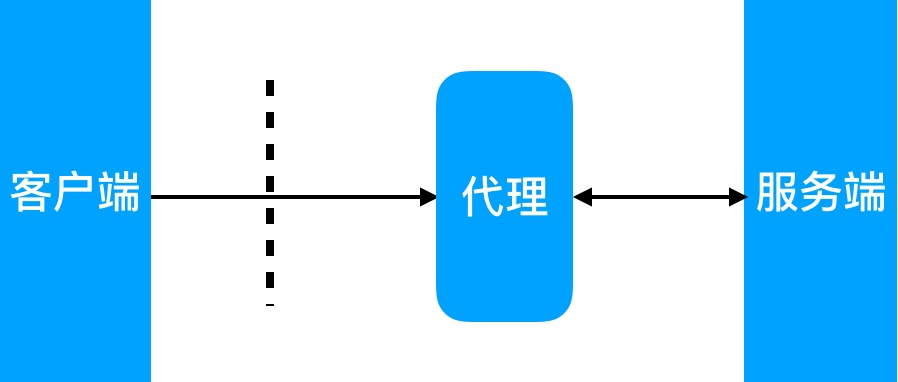

正向代理(内部上网) 客户端<–>代理->服务端
反向代理 客户端->代理<–>服务端
代理区别
区别在于代理的对象不一样
正向代理代理的对象是客户端
反向代理代理的对象是服务端
1.1Nginx代理配置语法
1.Nginx代理配置语法
Syntax: proxy_pass URL;
Default: —
Context: location, if in location, limit_except
http://localhost:8000/uri/
http://192.168.56.11:8000/uri/
http://unix:/tmp/backend.socket:/uri/2.类似于nopush缓冲区
//尽可能收集所有头请求,
Syntax: proxy_buffering on | off;
Default:
proxy_buffering on;
Context: http, server, location
//扩展:
proxy_buffer_size
proxy_buffers
proxy_busy_buffer_size3.跳转重定向
Syntax: proxy_redirect default;
proxy_redirect off;proxy_redirect redirect replacement;
Default: proxy_redirect default;
Context: http, server, location4.头信息
Syntax: proxy_set_header field value;
Default: proxy_set_header Host $proxy_host;
proxy_set_header Connection close;
Context: http, server, location
//扩展:
proxy_hide_header
proxy_set_body5.代理到后端的TCP连接超时
Syntax: proxy_connect_timeout time;
Default: proxy_connect_timeout 60s;
Context: http, server, location
//扩展
proxy_read_timeout //以及建立
proxy_send_timeout //服务端请求完, 发送给客户端时间6.Proxy常见配置项具体配置如下:
[root@Nginx ~]# vim /etc/nginx/proxy_params
proxy_redirect default;
proxy_set_header Host $http_host;
proxy_set_header X-Real-IP $remote_addr;
proxy_set_header X-Forwarded-For $proxy_add_x_forwarded_for;
proxy_connect_timeout 30;
proxy_send_timeout 60;
proxy_read_timeout 60;
proxy_buffer_size 32k;
proxy_buffering on;
proxy_buffers 4 128k;
proxy_busy_buffers_size 256k;
proxy_max_temp_file_size 256k;
//具体location实现
location / {
proxy_pass http://127.0.0.1:8080;
include proxy_params;
}1.2Nginx正向代理示例

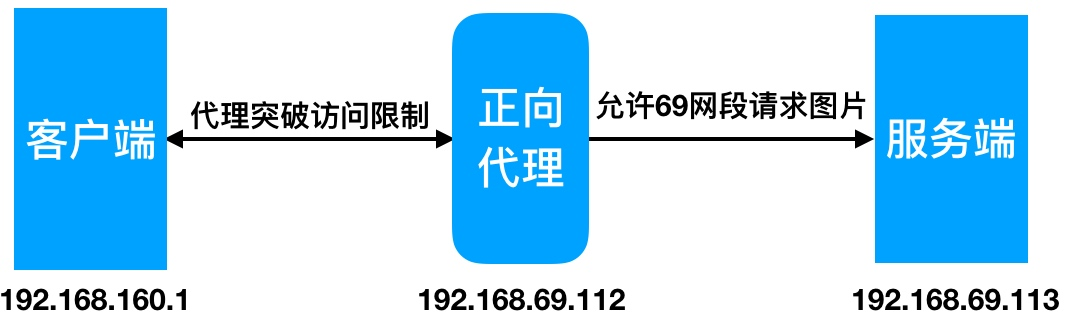

Nginx正向代理配置实例
//配置69.113访问限制,仅允许同网段访问
location ~ .*\.(jpg|gif|png)$ {
allow 192.168.69.0/24;
deny all;
root /soft/code/images;
//配置正向代理
[root@Nginx ~]# cat /etc/nginx/conf.d/zy_proxy.conf
server {
listen 80;
resolver 233.5.5.5;
location / {
proxy_pass http://$http_host$request_uri;
proxy_set_header Host $http_host;
proxy_set_header X-Real-IP $remote_addr;
proxy_set_header X-Forwarded-For $proxy_add_x_forwarded_for;
}
}//客户端使用SwitchySharp浏览器插件配置正向代理

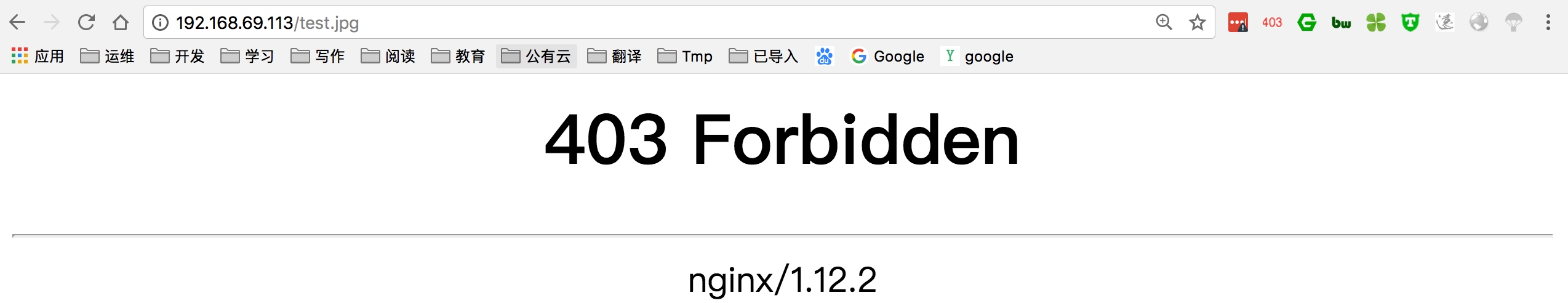

没有连接正向代理访问

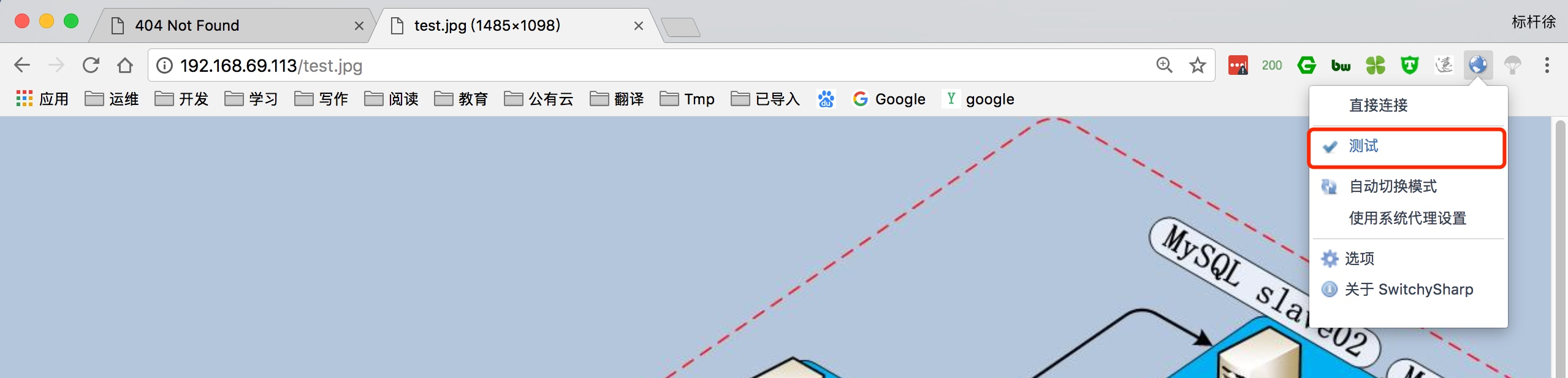

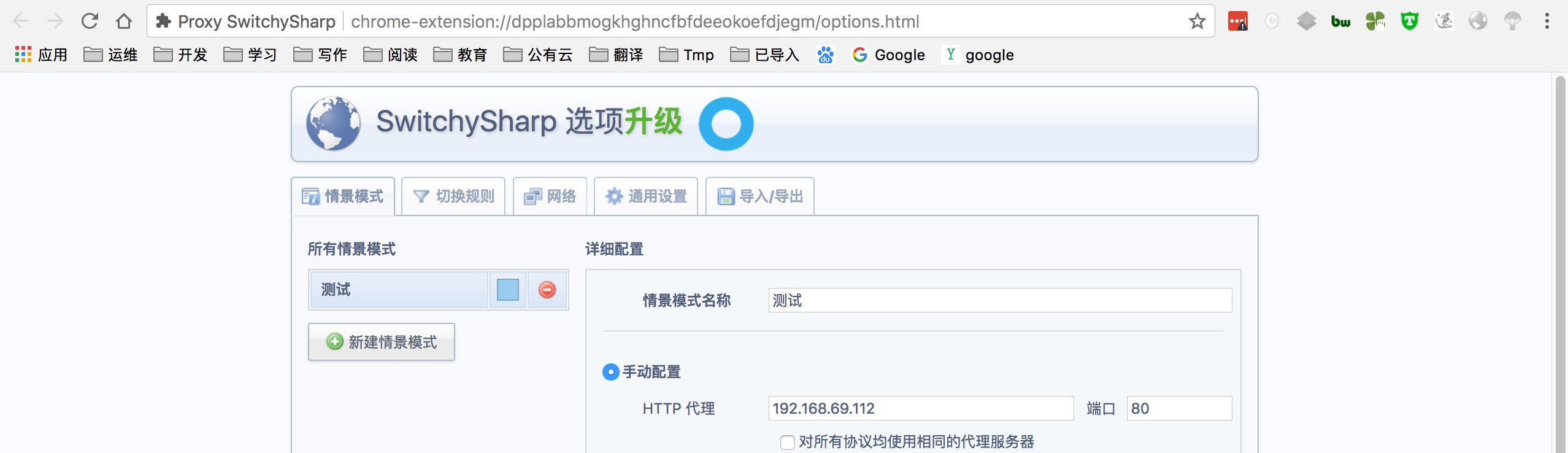

配置正向代理连接
启用正向代理后可以突破访问限制

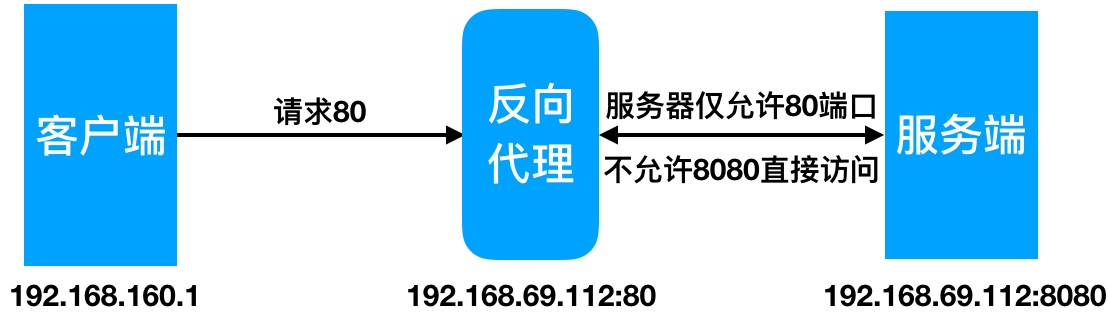

1.3Nginx反向代理示例
Nginx反向代理配置实例
//proxy代理
[root@proxy ~]# cat /etc/nginx/conf.d/proxy.conf
server {
listen 80;
server_name nginx.bjstack.com;
index index.html;
location / {
proxy_pass http://192.168.56.100;
include proxy_params;
}
}//WEB站点
[root@Nginx ~]# cat /etc/nginx/conf.d/images.conf
server {
listen 80;
server_name nginx.bjstack.com;
root /soft/code;
location / {
root /soft/code;
index index.html;
}
location ~ .*\.(png|jpg|gif)$ {
gzip on;
root /soft/code/images;
}
}2.Nginx负载均衡
提升吞吐率, 提升请求性能, 提高容灾

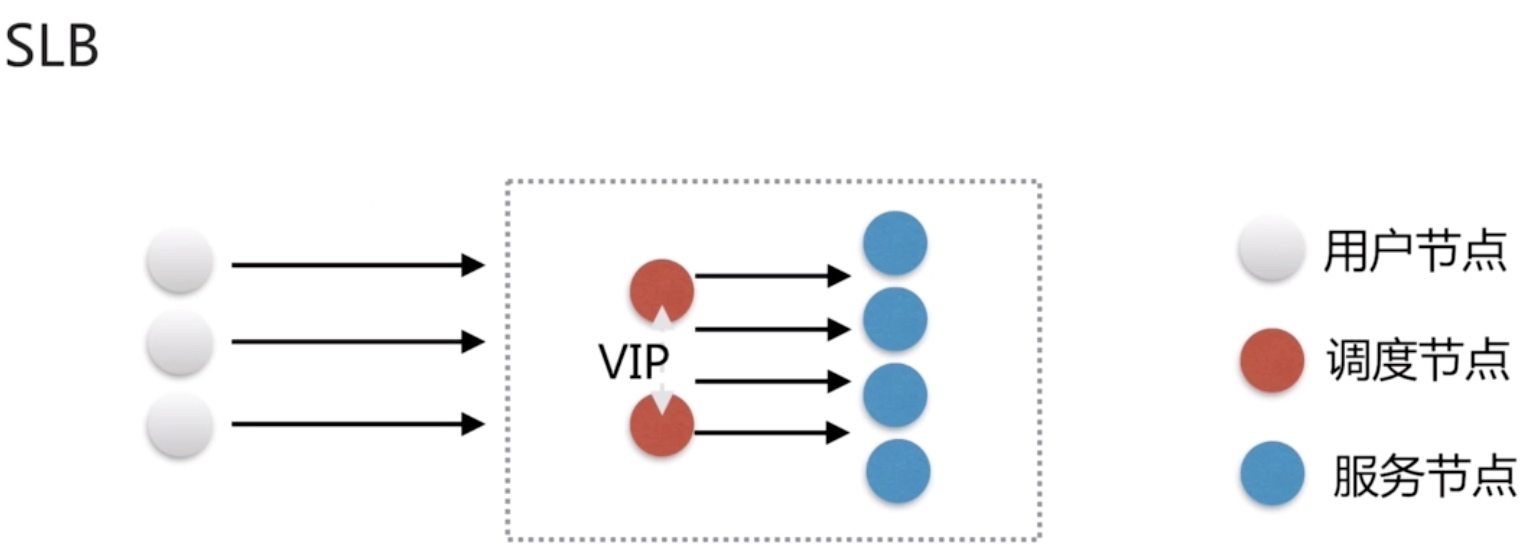

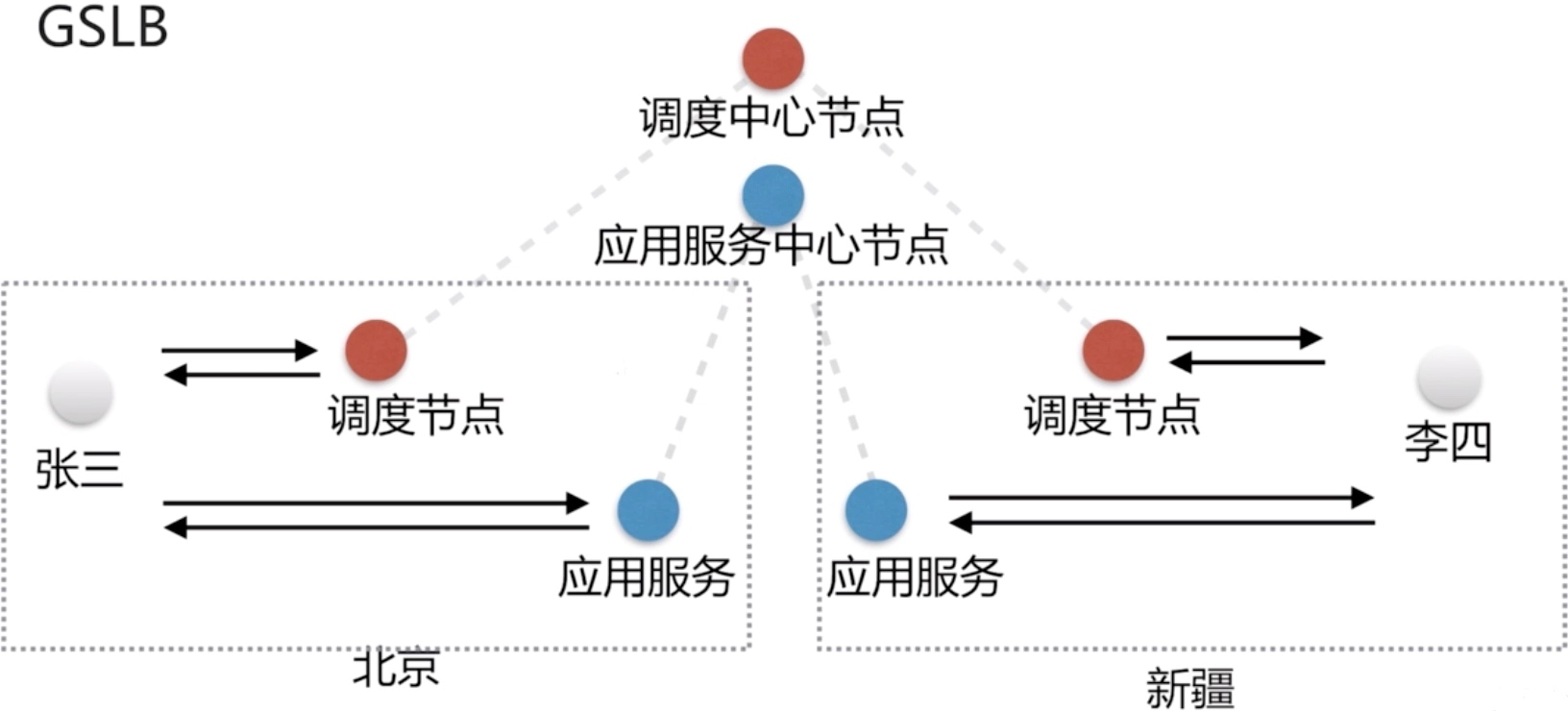

负载均衡按范围划分:GSLB全局负载均衡、SLB
Nginx是一个典型的SLB

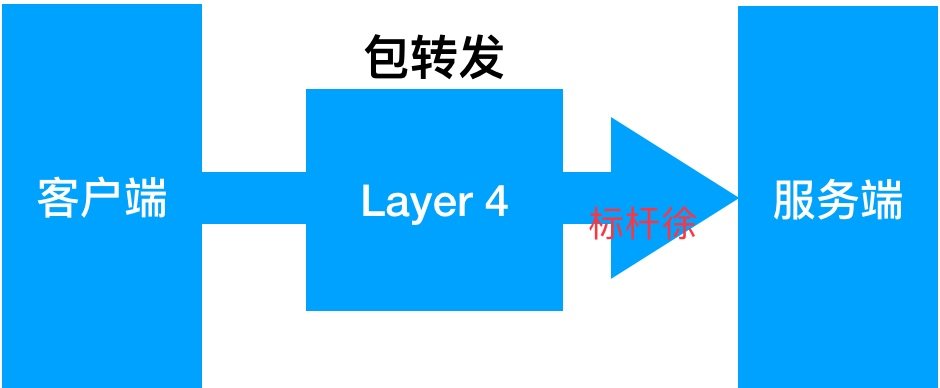

负载均衡按层级划分: 分为四层负载均衡和七层负载均衡

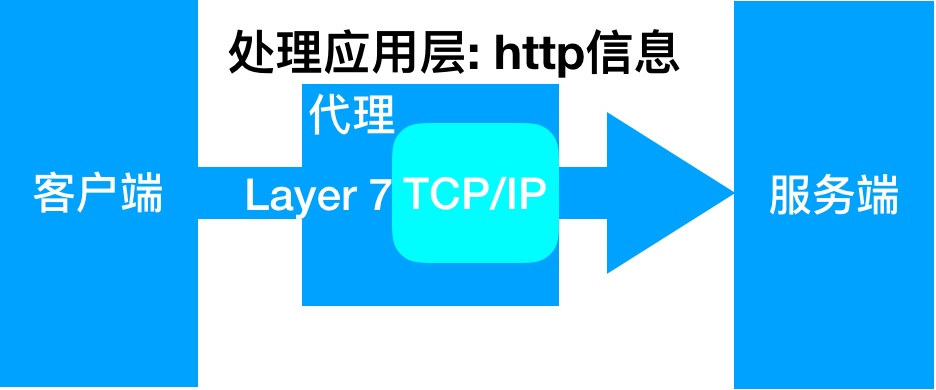

Nginx是一个典型的七层SLB
2.1Nginx负载均衡配置场景

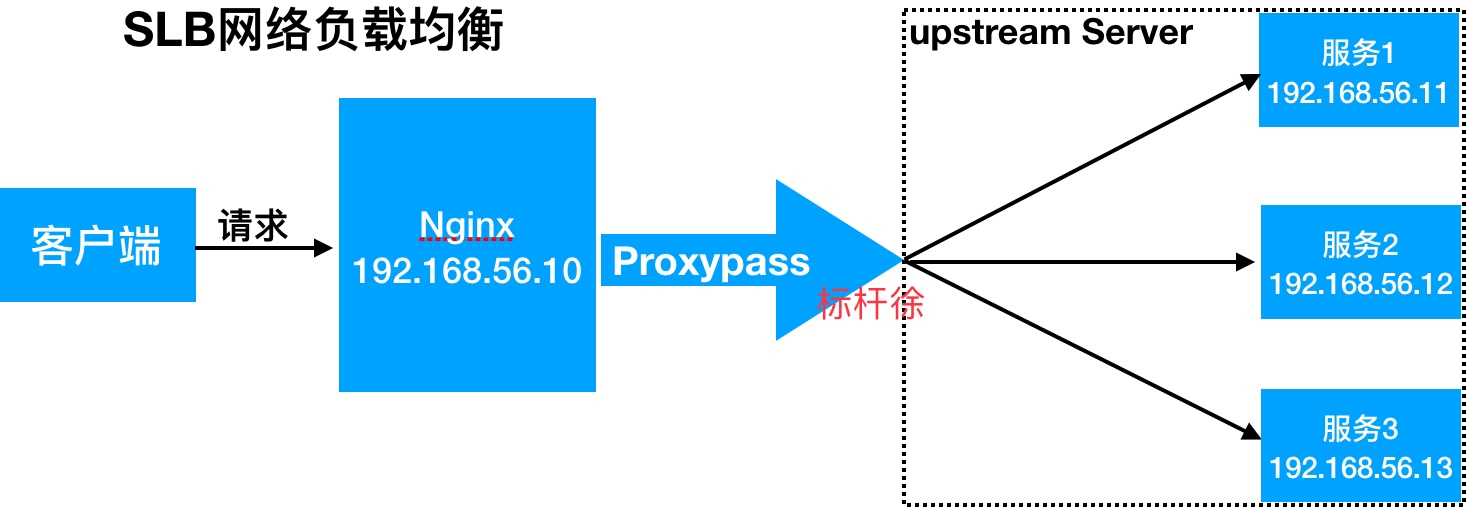

Nginx实现负载均衡用到了proxy_pass代理模块核心配置, 将客户端请求代理转发至一组upstream虚拟服务池
Nginx upstream虚拟配置语法
Syntax: upstream name { ... }
Default: -
Context: http
//upstream例子
upstream backend {
server backend1.example.com weight=5;
server backend2.example.com:8080;
server unix:/tmp/backend3;
server backup1.example.com:8080 backup;
}
server {
location / {
proxy_pass http://backend;
}
}1.创建对应html文件
[root@Nginx ~]# mkdir /soft/{code1,code2,code3} -p
[root@Nginx ~]# cat /soft/code1/index.html
<html>
<title> Code1</title>
<body bgcolor="red">
<h1> Code1-8081 </h1>
</body>
</html>
[root@Nginx ~]# cat /soft/code2/index.html
<html>
<title> Coder2</title>
<body bgcolor="blue">
<h1> Code1-8082</h1>
</body>
</html>
[root@Nginx ~]# cat /soft/code3/index.html
<html>
<title> Coder3</title>
<body bgcolor="green">
<h1> Code1-8083</h1>
</body>
</html>2.建立对应的releserver.conf配置文件
[root@Nginx ~]# cat /etc/nginx/conf.d/releserver.conf
server {
listen 8081;
root /soft/code1;
index index.html;
}
server {
listen 8082;
root /soft/code2;
index index.html;
}
server {
listen 8083;
root /soft/code3;
index index.html;
}3.配置Nginx反向代理
[root@Nginx ~]# cat /etc/nginx/conf.d/proxy.conf
upstream node {
server 192.168.69.113:8081;
server 192.168.69.113:8082;
server 192.168.69.113:8083;
}
server {
server_name 192.168.69.113;
listen 80;
location / {
proxy_pass http://node;
include proxy_params;
}

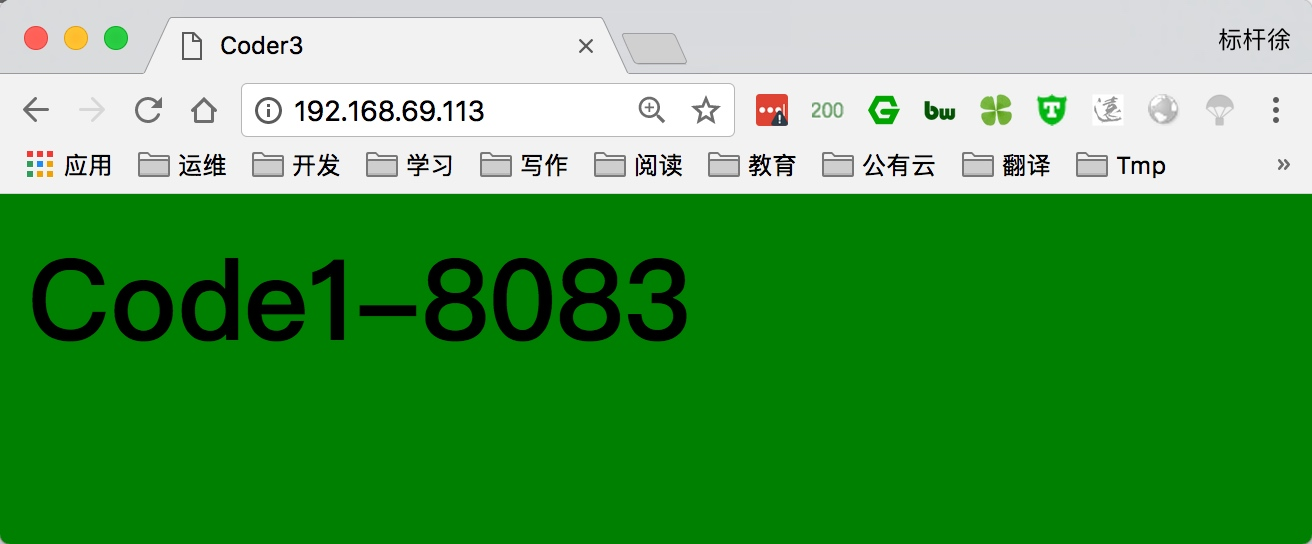

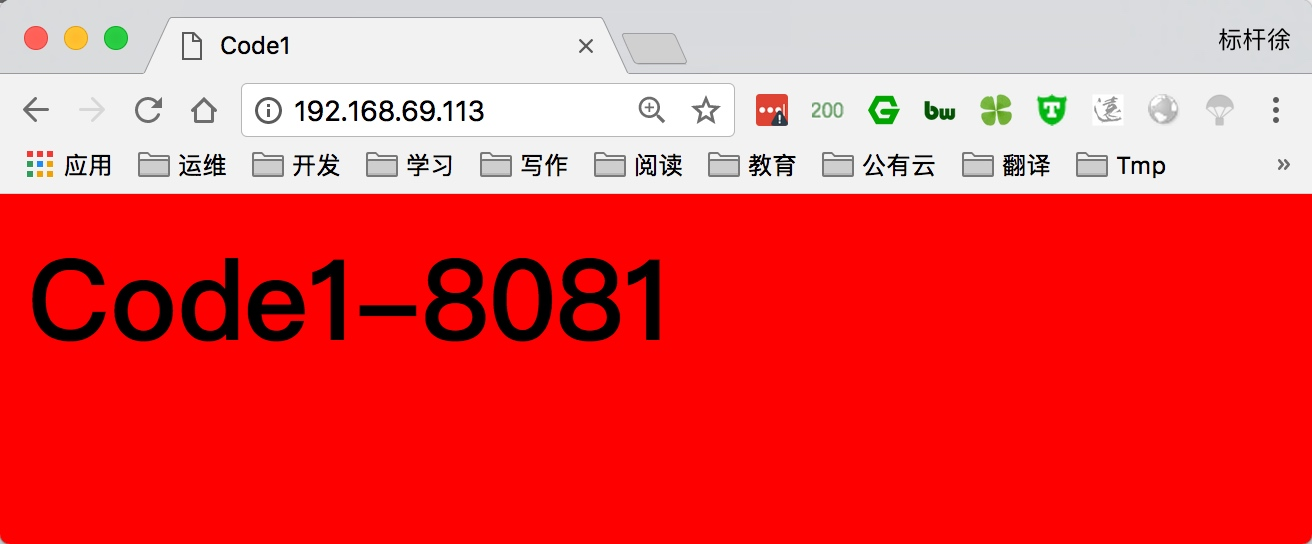

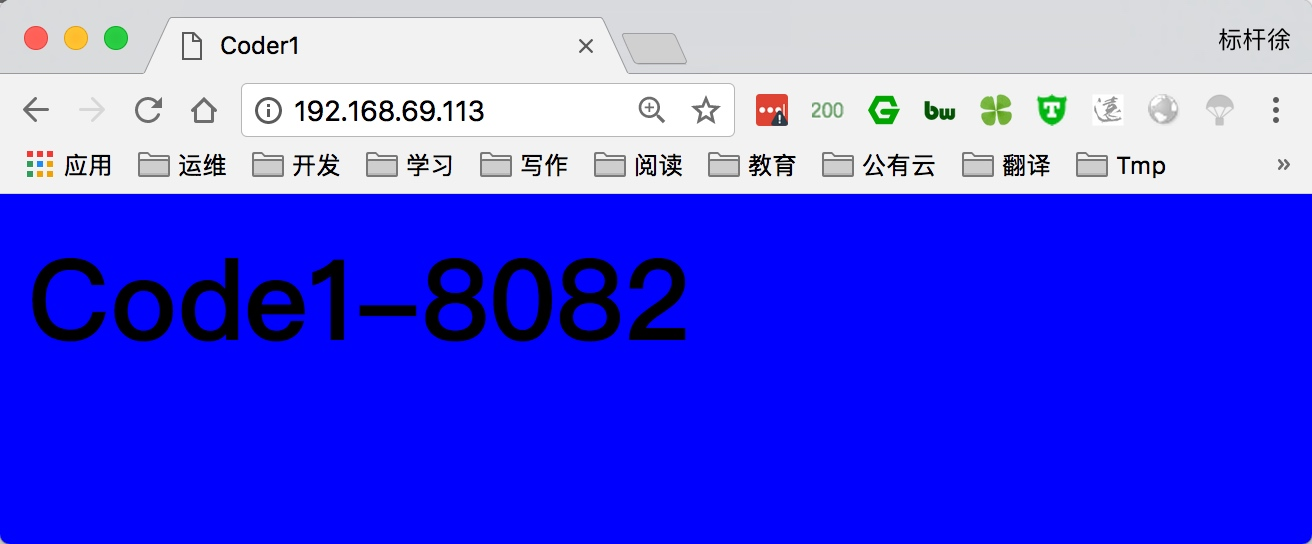

}4.使用浏览器验证
2.2Nginx负载均衡状态配置

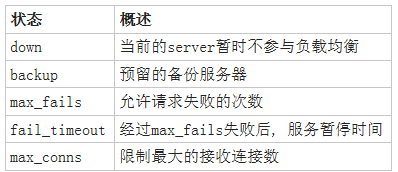

后端服务器在负载均衡调度中的状态
测试backup以及down状态
upstream load_pass {
server 192.168.56.11:8001 down;
server 192.168.56.12:8002 backup;
server 192.168.56.13:8003 max_fails=1 fail_timeout=10s;
}
location / {
proxy_pass http://load_pass;
include proxy_params;
}
//关闭8003测试2.3Nginx负载均衡调度策略
Nginx负载均衡权重轮询具体配置
upstream load_pass {
server 192.168.56.11:8001;
server 192.168.56.12:8002 weight=5;
server 192.168.56.13:8003;
}Nginx负载均衡ip_hash具体配置
//如果客户端都走相同代理, 会导致某一台服务器连接过多
upstream load_pass {
ip_hash;
server 192.168.56.11:8001;
server 192.168.56.12:8002;
server 192.168.56.13:8003;
}Nginx负载均衡url_hash具体配置
//如果出现通过代理访问会影响后端节点接收状态均衡
upstream load_pass {
hash $request_uri;
server 192.168.56.11:8001;
server 192.168.56.12:8002;
server 192.168.56.13:8003;
}
//针对三台服务器添加相同文件
/soft/code1/url1.html url2.html url3.html
/soft/code2/url1.html url2.html url3.html
/soft/code3/url1.html url2.html url3.html2.4Nginx负载均衡TCP配置
Nginx四层代理仅能存在于main段
stream {
upstream ssh_proxy {
hash $remote_addr consistent;
server 192.168.56.103:22;
}
upstream mysql_proxy {
hash $remote_addr consistent;
server 192.168.56.103:3306;
}
server {
listen 6666;
proxy_connect_timeout 1s;
proxy_timeout 300s;
proxy_pass ssh_proxy;
}
server {
listen 5555;
proxy_connect_timeout 1s;
proxy_timeout 300s;
proxy_pass mysql_proxy;
}
}3.Nginx动静分离

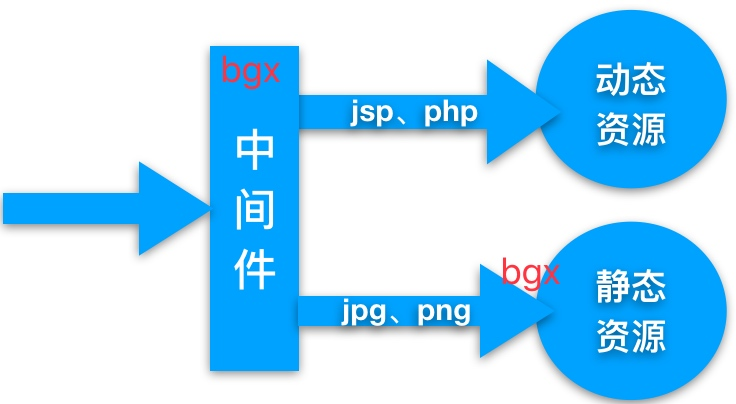

动静分离,通过中间件将动态请求和静态请求进行分离, 分离资源, 减少不必要的请求消耗, 减少请求延时。
好处: 动静分离后, 即使动态服务不可用, 但静态资源不会受到影响

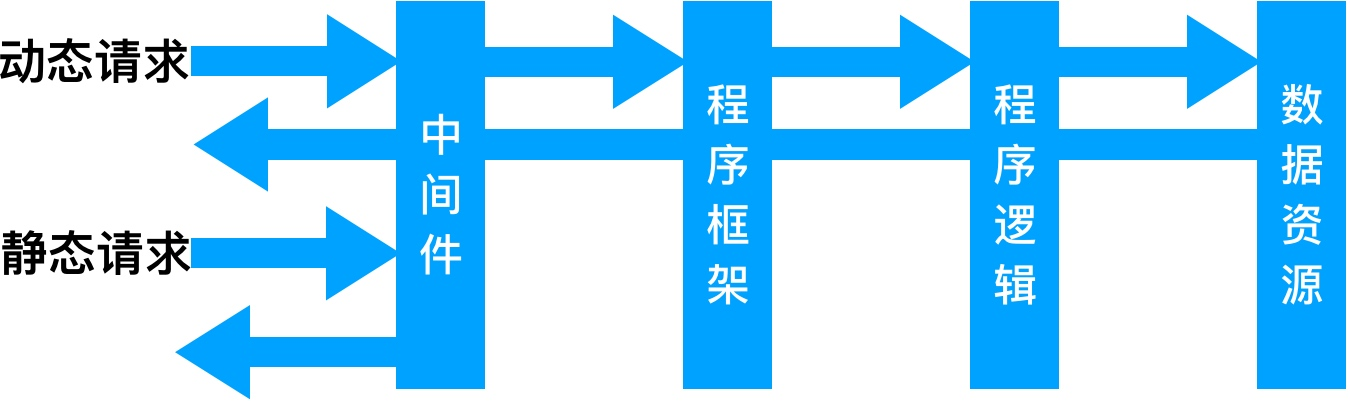

通过中间件将动态请求和静态请求分离
3.1Nginx动静分离应用案例
0.环境准备
1.在192.168.69.113静态资源
[root@Nginx conf.d]# cat access.conf
server{
listen 80;
root /soft/code;
index index.html;
location ~ .*\.(png|jpg|gif)$ {
gzip on;
root /soft/code/images;
}
}
//准备目录, 以及静态相关图片
[root@Nginx ~]# wget -O /soft/code/images/nginx.png http://nginx.org/nginx.png2.在192.168.69.113准备动态资源
[root@Nginx ~]# wget -O /soft/package/tomcat9.tar.gz \
http://mirror.bit.edu.cn/apache/tomcat/tomcat-9/v9.0.7/bin/apache-tomcat-9.0.7.tar.gz
[root@Nginx ~]# mkdir /soft/app
[root@Nginx ~]# tar xf /soft/package/tomcat9.tar.gz -C /soft/app/
[root@Nginx ~]# vim /soft/app/apache-tomcat-9.0.7/webapps/ROOT/java_test.jsp
<%@ page language="java" import="java.util.*" pageEncoding="utf-8"%>
<HTML>
<HEAD>
<TITLE>JSP Test Page</TITLE>
</HEAD>
<BODY>
<%
Random rand = new Random();
out.println("<h1>Random number:</h1>");
out.println(rand.nextInt(99)+100);
%>
</BODY>
</HTML>
4.在192.168.69.112配置负载均衡代理调度, 实现访问jsp和png
upstream static {
server 192.168.69.113:80;
}
upstream java {
server 192.168.69.113:8080;
}
server {
listen 80;
server_name 192.168.69.112;
location / {
root /soft/code;
index index.html;
}
location ~ .*\.(png|jpg|gif)$ {
proxy_pass http://static;
include proxy_params;
}
location ~ .*\.jsp$ {
proxy_pass http://java;
include proxy_params;
}

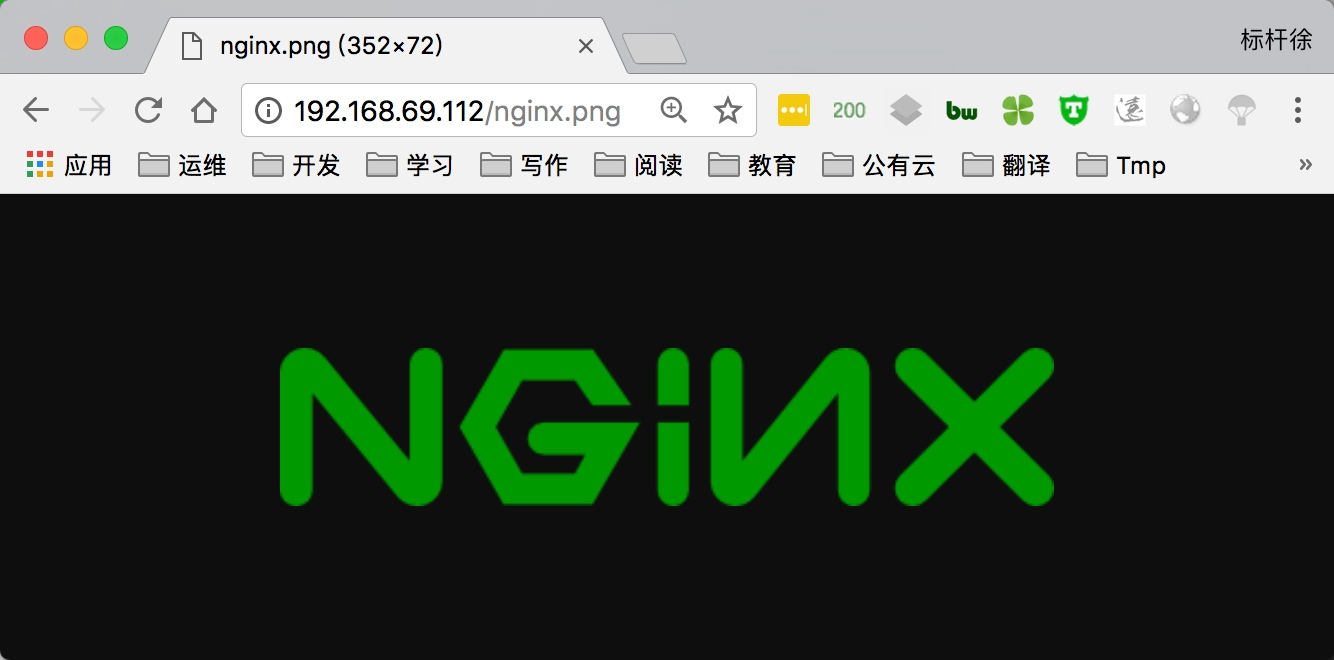

}测试访问静态资源

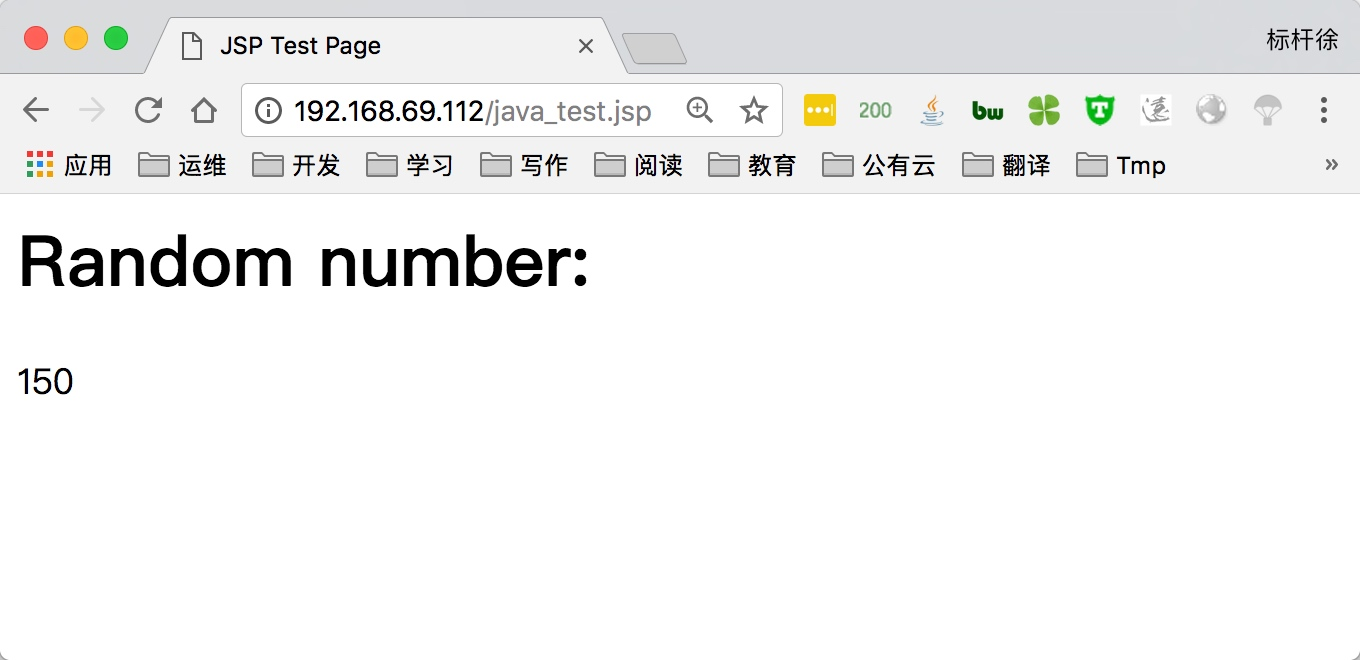

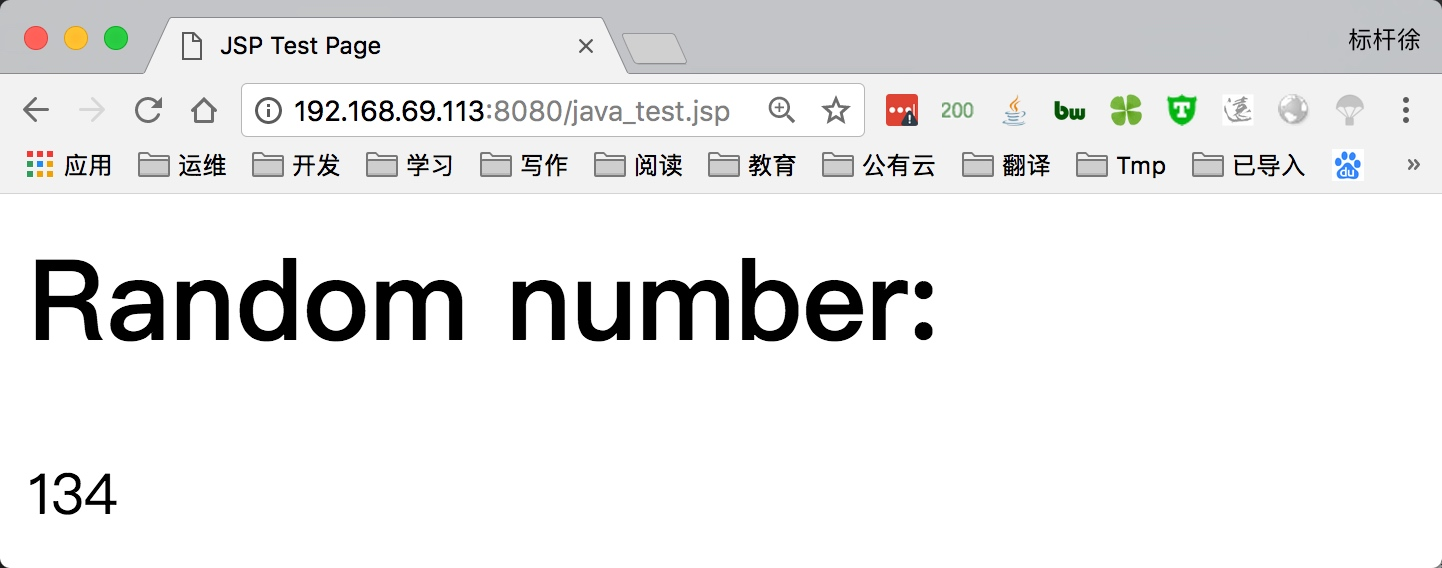

测试访问动态资源
3.在192.168.69.112 proxy代理上编写动静整合html文件
[root@Nginx ~]# cat /soft/code/mysite.html
<html lang="en">
<head>
<meta charset="UTF-8" />
<title>测试ajax和跨域访问</title>
<script src="http://libs.baidu.com/jquery/2.1.4/jquery.min.js"></script>
</head>
<script type="text/javascript">
$(document).ready(function(){
$.ajax({
type: "GET",
url: "http://192.168.69.112/java_test.jsp",
success: function(data) {
$("#get_data").html(data)
},
error: function() {
alert("fail!!,请刷新再试!");
}
});
});
</script>
<body>
<h1>测试动静分离</h1>
<img src="http://192.168.69.112/nginx.png">
<div id="get_data"></div>
</body>
</html>

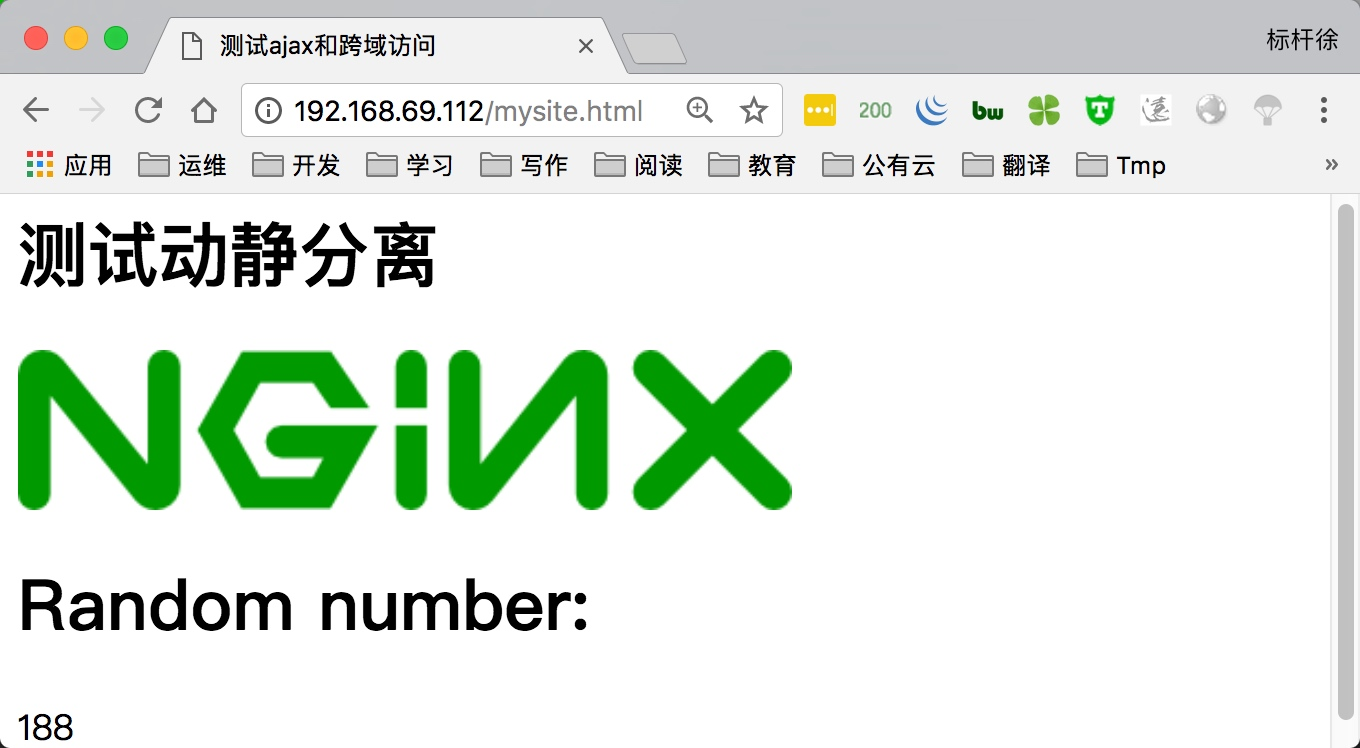

测试动静分离整合

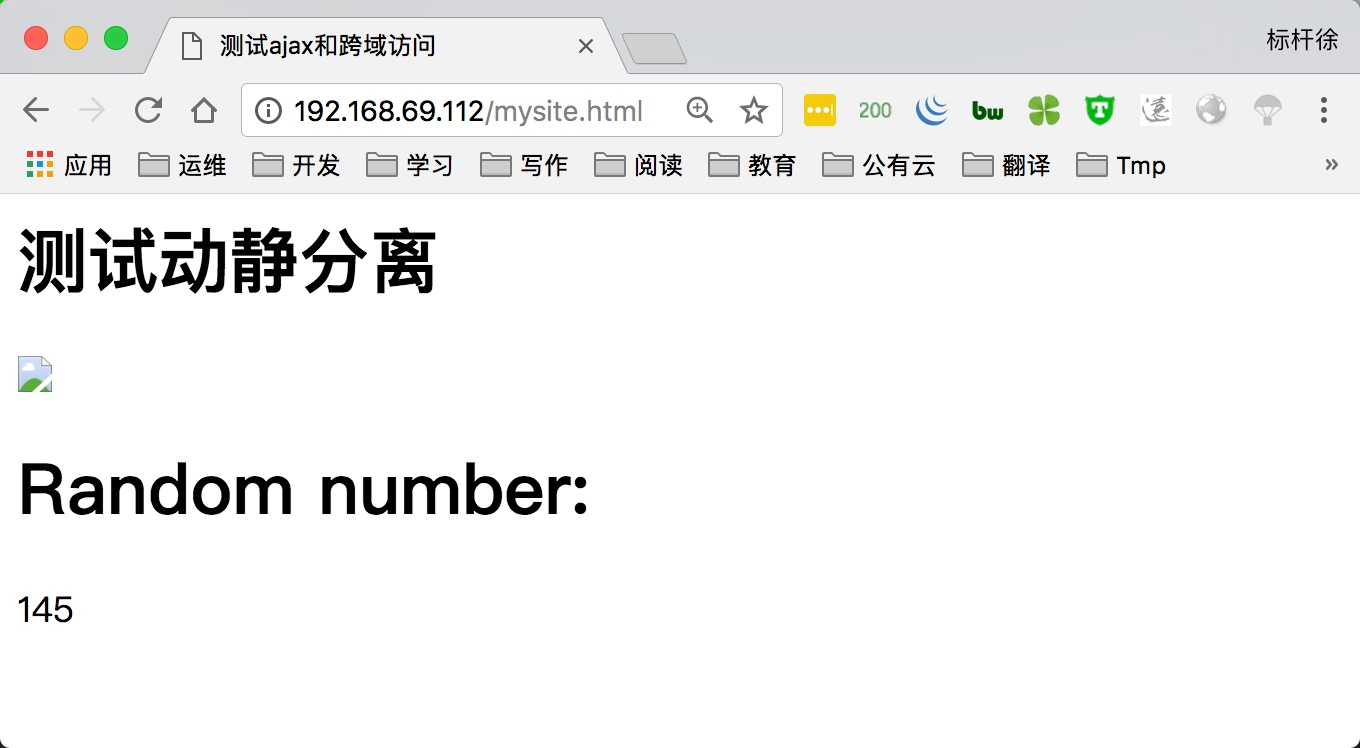

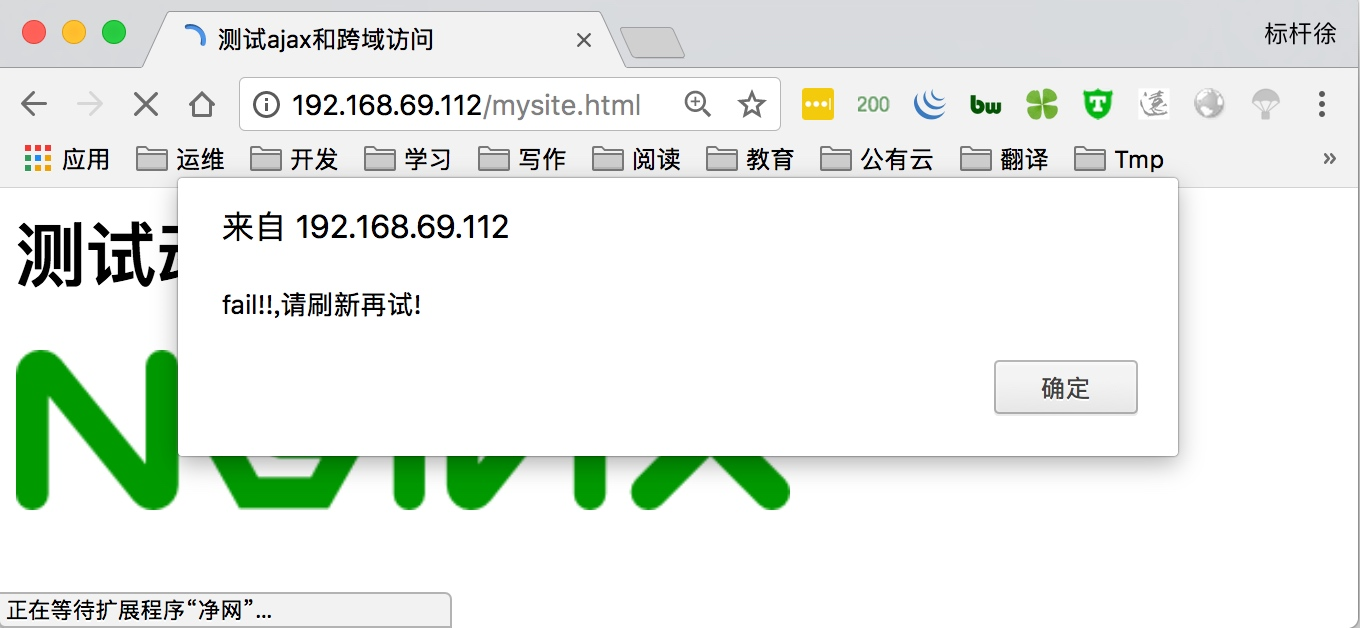

当停止Nginx后, 强制刷新页面会发现静态内容无法访问, 动态内容依旧运行正常
当停止tomcat后, 静态内容依旧能正常访问, 动态内容将不会被请求到
3.2Nginx手机电脑应用案例
2.根据不同的浏览器, 以及不同的手机, 访问的效果都将不一样。
//通过浏览器来分别连接不同的浏览器访问不同的效果。
http {
...
upstream firefox {
server 172.31.57.133:80;
}
upstream chrome {
server 172.31.57.133:8080;
}
upstream iphone {
server 172.31.57.134:8080;
}
upstream android {
server 172.31.57.134:8081;
}
upstream default {
server 172.31.57.134:80;
}
...
}
//server根据判断来访问不同的页面
server {
listen 80;
server_name www.xuliangwei.com;
#safari浏览器访问的效果
location / {
if ($http_user_agent ~* "Safari"){
proxy_pass http://dynamic_pools;
}
#firefox浏览器访问效果
if ($http_user_agent ~* "Firefox"){
proxy_pass http://static_pools;
}
#chrome浏览器访问效果
if ($http_user_agent ~* "Chrome"){
proxy_pass http://chrome;
}

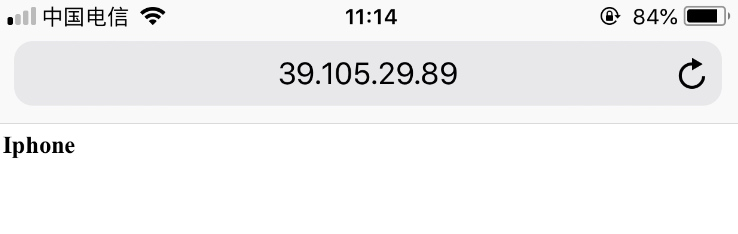

#iphone手机访问效果
if ($http_user_agent ~* "iphone"){
proxy_pass http://iphone;
}

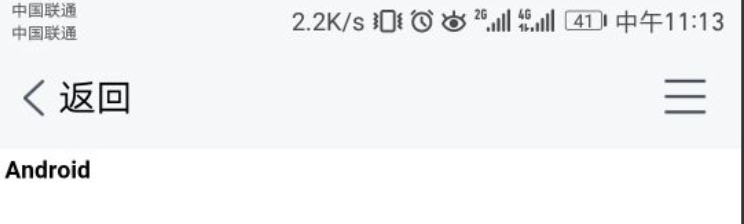

#android手机访问效果
if ($http_user_agent ~* "android"){
proxy_pass http://and;
}
#其他浏览器访问默认规则
proxy_pass http://dynamic_pools;
include proxy.conf;
}
}
}
3.根据访问不同目录, 代理不同的服务器
//默认动态，静态直接找设置的static，上传找upload
upstream static_pools {
server 10.0.0.9:80 weight=1;
}
upstream upload_pools {
server 10.0.0.10:80 weight=1;
}
upstream default_pools {
server 10.0.0.9:8080 weight=1;
}
server {
listen 80;
server_name www.xuliangwei.com;
#url: http://www.xuliangwei.com/
location / {
proxy_pass http://default_pools;
include proxy.conf;
}
#url: http://www.xuliangwei.com/static/
location /static/ {
proxy_pass http://static_pools;
include proxy.conf;
}
#url: http://www.xuliangwei.com/upload/
location /upload/ {
proxy_pass http://upload_pools;
include proxy.conf;
}
}
//方案2：以if语句实现。
if ($request_uri ~* "^/static/(.*)$")
{
proxy_pass http://static_pools/$1;
}
if ($request_uri ~* "^/upload/(.*)$")
{
proxy_pass http://upload_pools/$1;
}
location / {
proxy_pass http://default_pools;
include proxy.conf;
}
文档更新时间: 2019-07-09 12:49 作者：李延召
