前情回顾

使用ELK Stack收集、分析K8S内应用的日志
- 使用高配版ELK模型：
  - 安装部署ES
  - 安装部署kafka
  - 制作filebeat镜像
  - 使用“SideCar”模式构建业务pod
  - 启动logstah
  - 部署Kibana
- kibana的使用要点：
  - 时间选择器
  - 环境选择器
  - 项目选择器
  - 关键字选择器

第一章：容器云概述

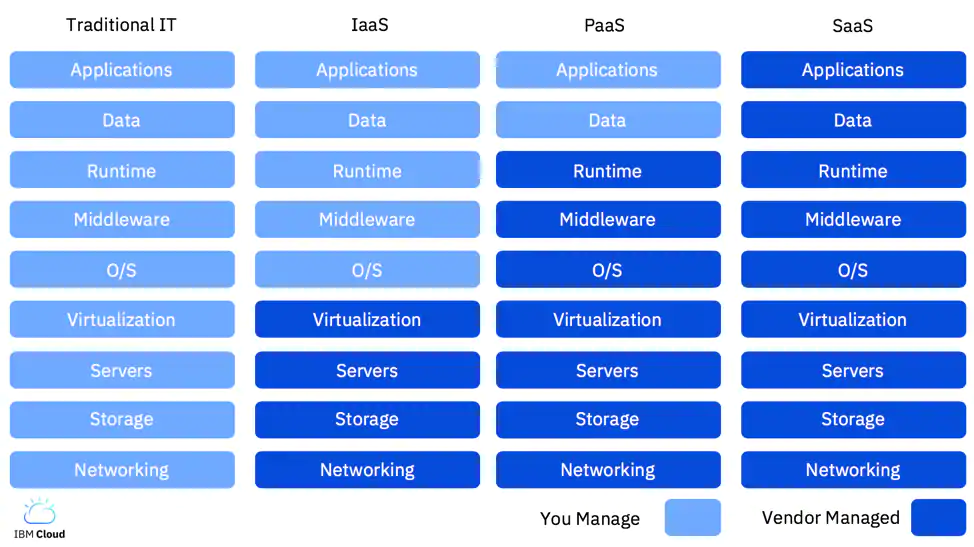

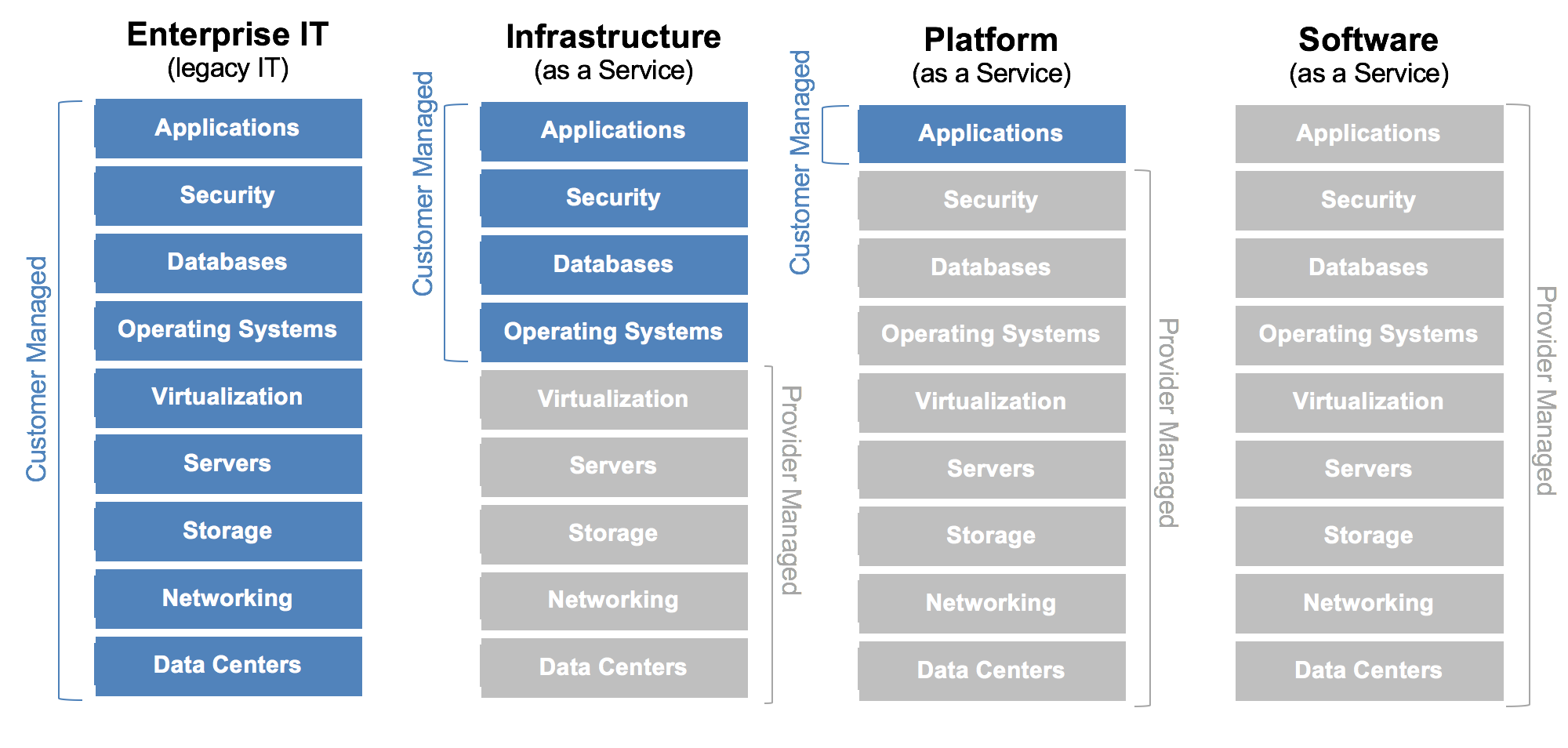

IaaS是云服务的最底层，主要提供一些基础资源。
PaaS提供软件部署平台(runtime),抽象掉硬件和操作系统细节，可以无缝地扩展(scaling)。开发者只需要关注自己的业务逻辑，不需要关注底层。
SaaS 是软件的开发、管理、部署都是交给第三方，不需要关心技术问题，可以拿来即用。

kubernetes不是什么？

kubernetes并不是传统的PaaS（平台即服务）系统。

Kubernetes不限制支持应用的类型，不限制应用框架。不限制受支持的语言runtimes（例如，java，python，ruby），满足12-factor applications。不区分“apps”或者“services”。
kubernetes支持不同负载应用，包括有状态、无状态、数据处理类型的应用。只要这个应用可以在容器运行，那么就能很好的运行在kubernetes上。
kubernetes不提供中间件(如message buses)、数据处理框架（如spark）、数据库（如Mysql）或者集群存储系统（如ceph）作为内置服务。这些应用都可以运行在Kubernetes上面。
kubernetes不部署源码不编译应用。持续集成的（CI）工作流方面，不同的用户有不同的需求和偏好的区域，因此，我们提供分层的CI工作流，但并不定义它应该如何工作。
kubernetes允许用户选择自己的日志、监控和报警系统。
kubernetes不提供或授权一个全面的应用程序配置语言/系统（例如，jsonnet）。
kubernetes不提供任何机器配置、维护、管理或者自我修复系统。

越来越多的云计算厂商，正在基于K8S构建PaaS平台
获得PaaS能力的几个必要条件：
- 统一应用的运行时环境（docker）
- laaS能力（K8S）
- 有可靠的中间件集群、数据库集群（DBA的主要工作）
- 有分布式存储集群（存储工程师的主要工作）
- 有适配的监控、日志系统（Prometheus、ELK）
- 有完善的CI、CD系统（jenkins、？）
常见的基于K8S的CD系统
- 自研
- Argo CD
- OpenShift
- Spinnaker

第二章：Spinnaker概述

spinnaker是Netflix在2015年，开源的一款持续交付平台，它继承了Netflix上一代集群和部署管理工具 Asgard：web-based Cloud Management and Deployment的优点，同时根据公司业务以及技术的发展抛弃了一些过时的设计：提高了持续交付系统的可复用行，提供了稳定可靠的API，提供了对基础设施和程序全局性的视图，配置、管理、运维都更简单，而且还完全兼容Asgard，总之对于Netflix来说Spinnaker是更牛逼的持续交付平台。

官方github

1.主要功能

集群管理

集群管理主要用于管理云资源，Spinnaker所说的“云”可以理解成AWS，即主要是laas的资源，比如OpenStack，Google云，微软云等，后来还支持了容器和Kubernetes，但是管理方式还是按照管理基础设施的模式来设计的。

部署管理

管理部署流程是Spinaker的核心功能，他负责将jenkins流水线创建的镜像，部署到kubernetes集群中去，让服务真正运行起来。

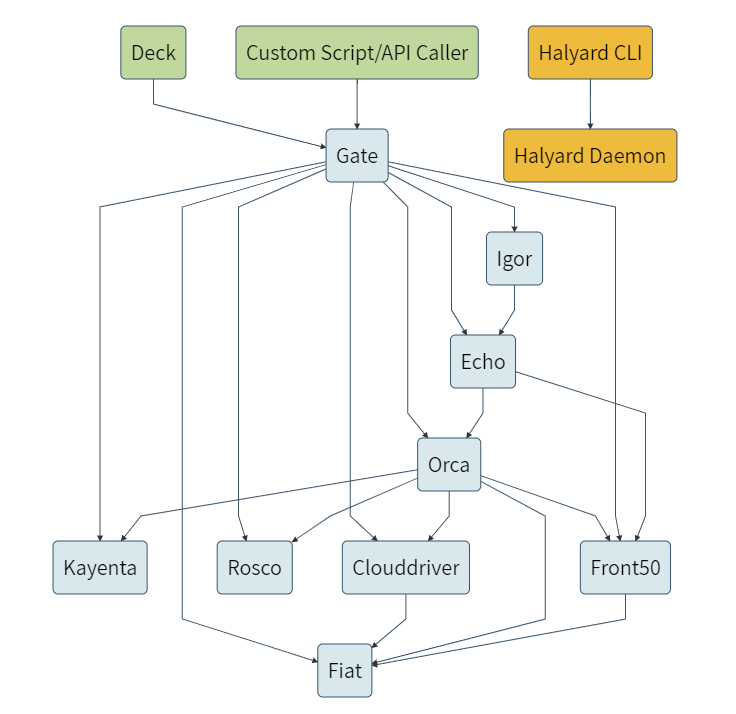

第三章：自动化运维平台架构详解

来源及解释

第四章：安装部署Spinnaker微服务集群

1.部署对象式存储组件—minio

运维主机shkf6-245.host.com上：

1.下载镜像

镜像下载地址

[root@shkf6-245 ~]# docker pull minio/minio:latest

[root@shkf6-245 ~]# docker images|grep minio
minio/minio                                       latest                     902f6a03bf69        5 days ago          53.6MB

[root@shkf6-245 ~]# docker tag 902f6a03bf69 harbor.od.com/armory/minio:latest
[root@shkf6-245 ~]# docker push harbor.od.com/armory/minio:latest

[root@shkf6-245 ~]# mkdir /data/nfs-volume/minio

2.准备资源配置清单

Deployment

[root@shkf6-245 ~]# mkdir /data/k8s-yaml/armory/minio

[root@shkf6-245 ~]# vi /data/k8s-yaml/armory/minio/dp.yaml
[root@shkf6-245 ~]# cat /data/k8s-yaml/armory/minio/dp.yaml
kind: Deployment
apiVersion: extensions/v1beta1
kind: Deployment
metadata:
  labels:
    name: minio
  name: minio
  namespace: armory
spec:
  progressDeadlineSeconds: 600
  replicas: 1
  revisionHistoryLimit: 7
  selector:
    matchLabels:
      name: minio
  template:
    metadata:
      labels:
        app: minio
        name: minio
    spec:
      containers:
      - name: minio
        image: harbor.od.com/armory/minio:latest
        imagePullPolicy: IfNotPresent
        ports:
        - containerPort: 9000
          protocol: TCP
        args:
        - server
        - /data
        env:
        - name: MINIO_ACCESS_KEY
          value: admin
        - name: MINIO_SECRET_KEY
          value: admin123
        readinessProbe:
          failureThreshold: 3
          httpGet:
            path: /minio/health/ready
            port: 9000
            scheme: HTTP
          initialDelaySeconds: 10
          periodSeconds: 10
          successThreshold: 1
          timeoutSeconds: 5
        volumeMounts:
        - mountPath: /data
          name: data
      imagePullSecrets:
      - name: harbor
      volumes:
      - nfs:
          server: shkf6-245
          path: /data/nfs-volume/minio
        name: data

Service

[root@shkf6-245 ~]# vi /data/k8s-yaml/armory/minio/svc.yaml
[root@shkf6-245 ~]# cat /data/k8s-yaml/armory/minio/svc.yaml
apiVersion: v1
kind: Service
metadata:
  name: minio
  namespace: armory
spec:
  ports:
  - port: 80
    protocol: TCP
    targetPort: 9000
  selector:
    app: minio

Ingress

[root@shkf6-245 ~]# vi /data/k8s-yaml/armory/minio/ingress.yaml

[root@shkf6-245 ~]# cat /data/k8s-yaml/armory/minio/ingress.yaml
kind: Ingress
apiVersion: extensions/v1beta1
metadata:
  name: minio
  namespace: armory
spec:
  rules:
  - host: minio.od.com
    http:
      paths:
      - path: /
        backend:
          serviceName: minio
          servicePort: 80

3.解析域名

[root@shkf6-241 ~]# tail -1 /var/named/od.com.zone
minio               A    192.168.6.66

4.应用资源配置清单

在任意一台运算节点

[root@shkf6-243 ~]#  kubectl create secret docker-registry harbor --docker-server=harbor.od.com --docker-username=admin --docker-password=Harbor12345 -n armory

[root@shkf6-243 ~]# kubectl create ns armory
namespace/armory created
[root@shkf6-243 ~]# kubectl apply -f http://k8s-yaml.od.com/armory/minio/dp.yaml
deployment.extensions/minio created
[root@shkf6-243 ~]# kubectl apply -f http://k8s-yaml.od.com/armory/minio/svc.yaml
service/minio created
[root@shkf6-243 ~]# kubectl apply -f http://k8s-yaml.od.com/armory/minio/ingress.yaml
ingress.extensions/minio created

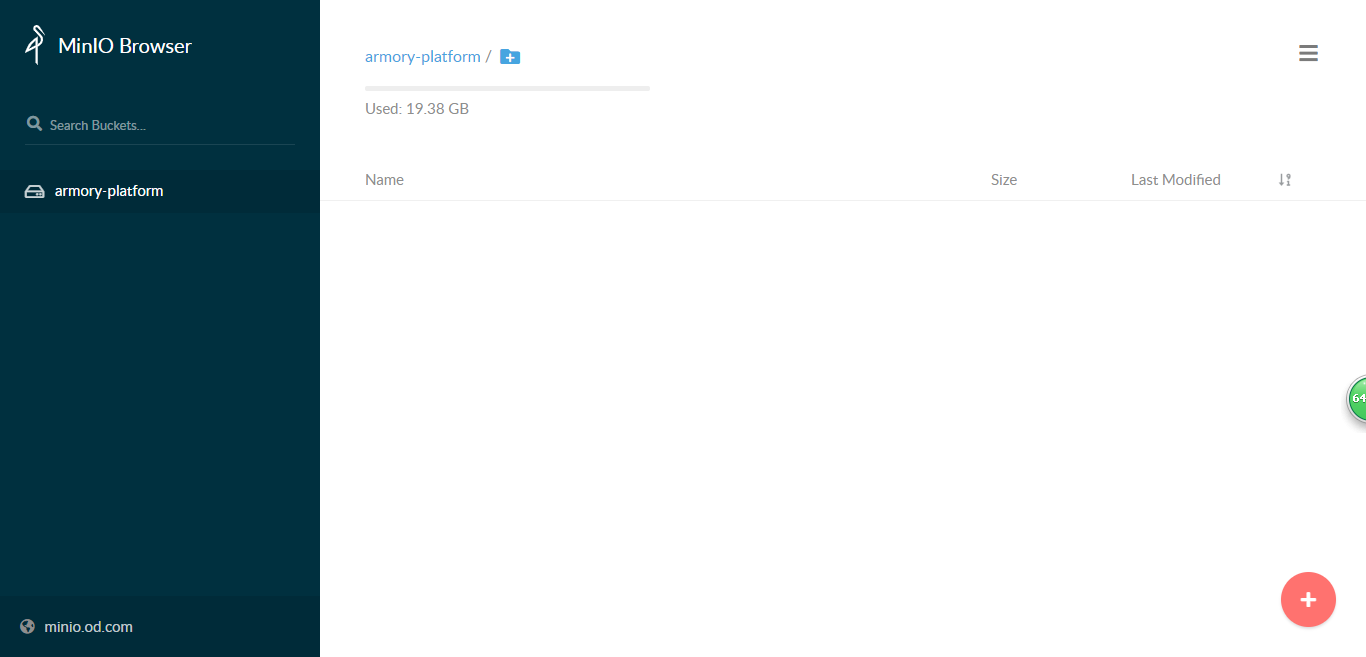

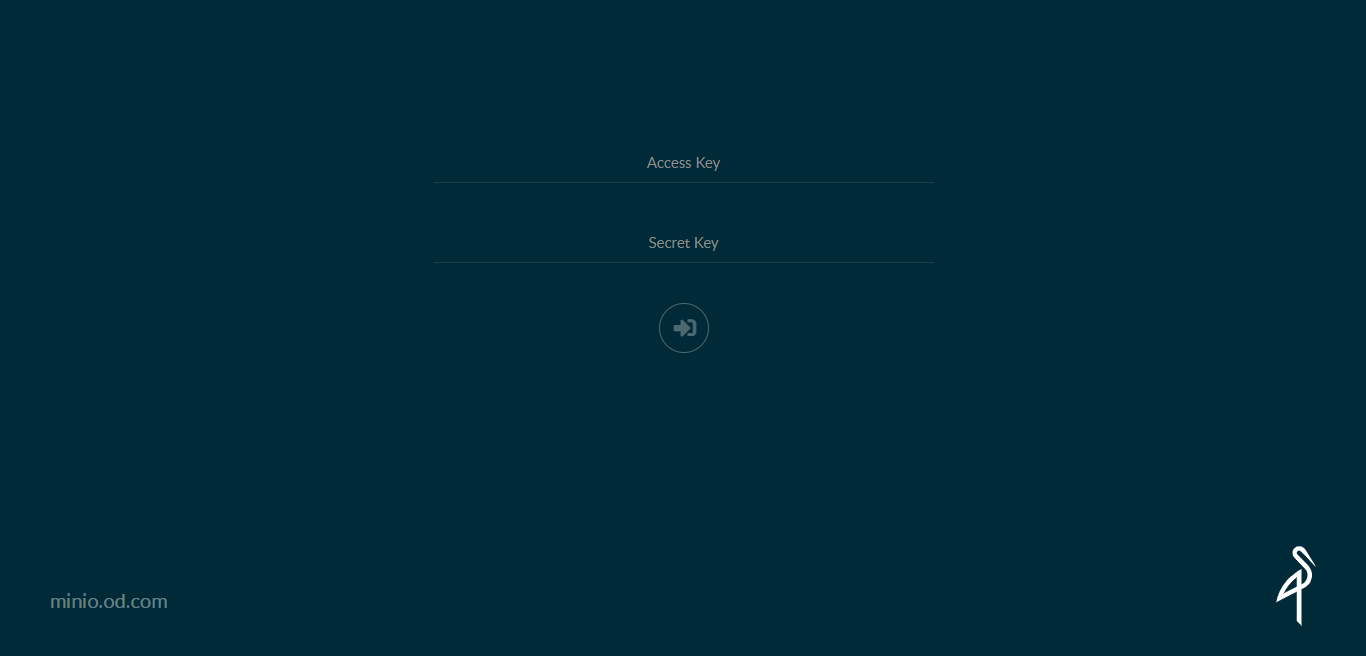

5.浏览器访问

http://minio.od.com

2.部署缓存组件—Redis

1.准备docker镜像

运维主机shkf6-245.host.com上：

镜像下载地址

[root@shkf6-245 ~]# docker pull redis:4.0.14

[root@shkf6-245 ~]# docker images|grep redis
redis                                             4.0.14                     b93767ee535f        6 days ago          89.2MB

[root@shkf6-245 ~]# docker tag b93767ee535f harbor.od.com/armory/redis:v4.0.14
[root@shkf6-245 ~]# docker push harbor.od.com/armory/redis:v4.0.14

2.准备资源配置清单

Deployment

[root@shkf6-245 ~]# mkdir /data/k8s-yaml/armory/redis
[root@shkf6-245 ~]# vi /data/k8s-yaml/armory/redis/dp.yaml
[root@shkf6-245 ~]# cat /data/k8s-yaml/armory/redis/dp.yaml
kind: Deployment
apiVersion: extensions/v1beta1
kind: Deployment
metadata:
  labels:
    name: redis
  name: redis
  namespace: armory
spec:
  replicas: 1
  revisionHistoryLimit: 7
  selector:
    matchLabels:
      name: redis
  template:
    metadata:
      labels:
        app: redis
        name: redis
    spec:
      containers:
      - name: redis
        image: harbor.od.com/armory/redis:v4.0.14
        imagePullPolicy: IfNotPresent
        ports:
        - containerPort: 6379
          protocol: TCP
      imagePullSecrets:
      - name: harbor

Service

[root@shkf6-245 ~]# vi /data/k8s-yaml/armory/redis/svc.yaml
[root@shkf6-245 ~]# cat /data/k8s-yaml/armory/redis/svc.yaml
apiVersion: v1
kind: Service
metadata:
  name: redis
  namespace: armory
spec:
  ports:
  - port: 6379
    protocol: TCP
    targetPort: 6379
  selector:
    app: redis

3.应用资源配置清单

任意运算节点上：

[root@shkf6-243 ~]# kubectl apply -f http://k8s-yaml.od.com/redis/dp.yaml
deployment.extensions/redis created
[root@shkf6-243 ~]# kubectl apply -f http://k8s-yaml.od.com/redis/svc.yaml
service/redis created

3.部署k8s云驱动组件—CloudDriver

运维主机shkf6-245.host.com上：

1.准备docker镜像

镜像下载地址

[root@shkf6-245 ~]# docker pull docker.io/armory/spinnaker-clouddriver-slim:release-1.8.x-14c9664

[root@shkf6-245 ~]# docker images|grep spinnaker-clouddriver-slim
armory/spinnaker-clouddriver-slim                 release-1.8.x-14c9664      edb2507fdb62        18 months ago       662MB

[root@shkf6-245 ~]# docker tag edb2507fdb62 harbor.od.com/armory/clouddriver:v1.8.x
[root@shkf6-245 ~]# docker push harbor.od.com/armory/clouddriver:v1.8.x

2.准备minio的secret

准备配置文件

运维主机shkf6-245.host.com上：

[root@shkf6-245 ~]# mkdir -p /data/k8s-yaml/armory/clouddriver
[root@shkf6-245 ~]# vi /data/k8s-yaml/armory/clouddriver/credentials
[root@shkf6-245 ~]# cat /data/k8s-yaml/armory/clouddriver/credentials
[default]
aws_access_key_id=admin
aws_secret_access_key=admin123

创建secret

任意运算节点上：

[root@shkf6-243 ~]# wget http://k8s-yaml.od.com/armory/clouddriver/credentials
[root@shkf6-243 ~]# kubectl create secret generic credentials --from-file=./credentials -n armory

3.准备k8s的用户配置

1.签发证书和私钥

在运维主机shkf6-245.host.com上：

准备证书签发文件admin-csr.json

[root@shkf6-245 ~]# cp /opt/certs/client-csr.json /opt/certs/admin-csr.json
[root@shkf6-245 ~]# cd /opt/certs/
[root@shkf6-245 certs]#cat admin-csr.json
{
    "CN": "cluster-admin",
    "hosts": [
    ],
    "key": {
        "algo": "rsa",
        "size": 2048
    },
    "names": [
        {
            "C": "CN",
            "ST": "beijing",
            "L": "beijing",
            "O": "od",
            "OU": "ops"
        }
    ]
}

注：CN要设置为：cluster-admin

签发生成admin.pem、admin-key.pem

[root@shkf6-245 certs]# cfssl gencert -ca=ca.pem -ca-key=ca-key.pem -config=ca-config.json -profile=client admin-csr.json | cfssl-json -bare admin
2020/01/09 17:36:20 [INFO] generate received request
2020/01/09 17:36:20 [INFO] received CSR
2020/01/09 17:36:20 [INFO] generating key: rsa-2048
2020/01/09 17:36:20 [INFO] encoded CSR
2020/01/09 17:36:20 [INFO] signed certificate with serial number 13522671111456276473606163567487943761642592599
2020/01/09 17:36:20 [WARNING] This certificate lacks a "hosts" field. This makes it unsuitable for
websites. For more information see the Baseline Requirements for the Issuance and Management
of Publicly-Trusted Certificates, v.1.1.6, from the CA/Browser Forum (https://cabforum.org);
specifically, section 10.2.3 ("Information Requirements").
[root@shkf6-245 certs]# ll admin*
-rw-r--r-- 1 root root 1001 Jan  9 17:36 admin.csr
-rw-r--r-- 1 root root  285 Jan  9 17:32 admin-csr.json
-rw------- 1 root root 1675 Jan  9 17:36 admin-key.pem
-rw-r--r-- 1 root root 1371 Jan  9 17:36 admin.pem

2.做kubeconfig配置

任意运算节点上：

[root@shkf6-243 ~]# scp shkf6-245:/opt/certs/ca.pem .
ca.pem                                                                                             100% 1346    44.4KB/s   00:00
[root@shkf6-243 ~]# scp shkf6-245:/opt/certs/admin.pem .
admin.pem                                                                                          100% 1371    86.5KB/s   00:00
[root@shkf6-243 ~]# scp shkf6-245:/opt/certs/admin-key.pem .
admin-key.pem                                                                                      100% 1675   115.6KB/s   00:00
[root@shkf6-243 ~]# kubectl config set-cluster myk8s --certificate-authority=./ca.pem --embed-certs=true --server=https://192.168.6.66:7443 --kubeconfig=config
Cluster "myk8s" set.
[root@shkf6-243 ~]# kubectl config set-credentials cluster-admin --client-certificate=./admin.pem --client-key=./admin-key.pem --embed-certs=true --kubeconfig=config
User "cluster-admin" set.
[root@shkf6-243 ~]# kubectl config set-context myk8s-context --cluster=myk8s --user=cluster-admin --kubeconfig=config
Context "myk8s-context" created.
[root@shkf6-243 ~]# kubectl config use-context myk8s-context --kubeconfig=config
Switched to context "myk8s-context".
[root@shkf6-243 ~]# kubectl create clusterrolebinding myk8s-admin --clusterrole=cluster-admin --user=cluster-admin
clusterrolebinding.rbac.authorization.k8s.io/myk8s-admin created

3.验证cluster-admin用户

将config文件拷贝至任意运算节点/root/.kube下，使用kubectl验证

4.创建configmap配置

[root@shkf6-243 ~]# cp config default-kubeconfig
[root@shkf6-243 ~]# kubectl create cm default-kubeconfig --from-file=default-kubeconfig -n armory
configmap/default-kubeconfig created

5.配置运维主机管理k8s集群

[root@shkf6-245 ~]# mkdir /root/.kube
[root@shkf6-245 ~]# cd /root/.kube
[root@shkf6-245 .kube]# scp shkf6-243:/root/config .

[root@shkf6-245 .kube]# scp shkf6-243:/opt/kubernetes/server/bin/kubectl /sbin/kubectl

[root@shkf6-245 .kube]# kubectl top node
NAME                 CPU(cores)   CPU%   MEMORY(bytes)   MEMORY%
shkf6-243.host.com   2062m        34%    7511Mi          63%
shkf6-244.host.com   1571m        26%    6525Mi          55%

[root@shkf6-245 ~]# yum install bash-completion -y
[root@shkf6-245 ~]# kubectl completion bash > /etc/bash_completion.d/kubectl

6.控制节点config和远程config 对比：（分析）

[root@shkf6-243 ~]# kubectl config view
apiVersion: v1
clusters: []
contexts: []
current-context: ""
kind: Config
preferences: {}
users: []

[root@shkf6-245 ~]# kubectl config view
apiVersion: v1
clusters:
- cluster:
    certificate-authority-data: DATA+OMITTED
    server: https://192.168.6.66:7443
  name: myk8s
contexts:
- context:
    cluster: myk8s
    user: cluster-admin
  name: myk8s-context
current-context: myk8s-context
kind: Config
preferences: {}
users:
- name: cluster-admin
  user:
    client-certificate-data: REDACTED
    client-key-data: REDACTED

4.准备资源配置清单

ConfigMap1

[root@shkf6-245 k8s-yaml]# vi /data/k8s-yaml/armory/clouddriver/init-env.yaml
[root@shkf6-245 k8s-yaml]# cat /data/k8s-yaml/armory/clouddriver/init-env.yaml
kind: ConfigMap
apiVersion: v1
metadata:
  name: init-env
  namespace: armory
data:
  API_HOST: http://spinnaker.od.com/api
  ARMORY_ID: c02f0781-92f5-4e80-86db-0ba8fe7b8544
  ARMORYSPINNAKER_CONF_STORE_BUCKET: armory-platform
  ARMORYSPINNAKER_CONF_STORE_PREFIX: front50
  ARMORYSPINNAKER_GCS_ENABLED: "false"
  ARMORYSPINNAKER_S3_ENABLED: "true"
  AUTH_ENABLED: "false"
  AWS_REGION: us-east-1
  BASE_IP: 127.0.0.1
  CLOUDDRIVER_OPTS: -Dspring.profiles.active=armory,configurator,local
  CONFIGURATOR_ENABLED: "false"
  DECK_HOST: http://spinnaker.od.com
  ECHO_OPTS: -Dspring.profiles.active=armory,configurator,local
  GATE_OPTS: -Dspring.profiles.active=armory,configurator,local
  IGOR_OPTS: -Dspring.profiles.active=armory,configurator,local
  PLATFORM_ARCHITECTURE: k8s
  REDIS_HOST: redis://redis:6379
  SERVER_ADDRESS: 0.0.0.0
  SPINNAKER_AWS_DEFAULT_REGION: us-east-1
  SPINNAKER_AWS_ENABLED: "false"
  SPINNAKER_CONFIG_DIR: /home/spinnaker/config
  SPINNAKER_GOOGLE_PROJECT_CREDENTIALS_PATH: ""
  SPINNAKER_HOME: /home/spinnaker
  SPRING_PROFILES_ACTIVE: armory,configurator,local

ConfigMap2

wget -O /data/k8s-yaml/armory/clouddriver/default-config.yaml http://down.sunrisenan.com/k8s/default-config.yaml

ConfigMap3

[root@shkf6-245 k8s-yaml]# vi /data/k8s-yaml/armory/clouddriver/custom-config.yaml
[root@shkf6-245 k8s-yaml]# cat /data/k8s-yaml/armory/clouddriver/custom-config.yaml
kind: ConfigMap
apiVersion: v1
metadata:
  name: custom-config
  namespace: armory
data:
  clouddriver-local.yml: |
    kubernetes:
      enabled: true
      accounts:
        - name: cluster-admin
          serviceAccount: false
          dockerRegistries:
            - accountName: harbor
              namespace: []
          namespaces:
            - test
            - prod
          kubeconfigFile: /opt/spinnaker/credentials/custom/default-kubeconfig
      primaryAccount: cluster-admin
    dockerRegistry:
      enabled: true
      accounts:
        - name: harbor
          requiredGroupMembership: []
          providerVersion: V1
          insecureRegistry: true
          address: http://harbor.od.com
          username: admin
          password: Harbor12345
      primaryAccount: harbor
    artifacts:
      s3:
        enabled: true
        accounts:
        - name: armory-config-s3-account
          apiEndpoint: http://minio
          apiRegion: us-east-1
      gcs:
        enabled: false
        accounts:
        - name: armory-config-gcs-account
  custom-config.json: ""
  echo-configurator.yml: |
    diagnostics:
      enabled: true
  front50-local.yml: |
    spinnaker:
      s3:
        endpoint: http://minio
  igor-local.yml: |
    jenkins:
      enabled: true
      masters:
        - name: jenkins-admin
          address: http://jenkins.od.com
          username: admin
          password: admin123
      primaryAccount: jenkins-admin
  nginx.conf: |
    gzip on;
    gzip_types text/plain text/css application/json application/x-javascript text/xml application/xml application/xml+rss text/javascript application/vnd.ms-fontobject application/x-font-ttf font/opentype image/svg+xml image/x-icon;

    server {
           listen 80;

           location / {
                proxy_pass http://armory-deck/;
           }

           location /api/ {
                proxy_pass http://armory-gate:8084/;
           }

           rewrite ^/login(.*)$ /api/login$1 last;
           rewrite ^/auth(.*)$ /api/auth$1 last;
    }
  spinnaker-local.yml: |
    services:
      igor:
        enabled: true

Deployment

[root@shkf6-245 k8s-yaml]# cat /data/k8s-yaml/armory/clouddriver/dp.yaml
apiVersion: extensions/v1beta1
kind: Deployment
metadata:
  labels:
    app: armory-clouddriver
  name: armory-clouddriver
  namespace: armory
spec:
  replicas: 1
  revisionHistoryLimit: 7
  selector:
    matchLabels:
      app: armory-clouddriver
  template:
    metadata:
      annotations:
        artifact.spinnaker.io/location: '"armory"'
        artifact.spinnaker.io/name: '"armory-clouddriver"'
        artifact.spinnaker.io/type: '"kubernetes/deployment"'
        moniker.spinnaker.io/application: '"armory"'
        moniker.spinnaker.io/cluster: '"clouddriver"'
      labels:
        app: armory-clouddriver
    spec:
      containers:
      - name: armory-clouddriver
        image: harbor.od.com/armory/clouddriver:v1.8.x
        imagePullPolicy: IfNotPresent
        command:
        - bash
        - -c
        args:
        - bash /opt/spinnaker/config/default/fetch.sh && cd /home/spinnaker/config
          && /opt/clouddriver/bin/clouddriver
        ports:
        - containerPort: 7002
          protocol: TCP
        env:
        - name: JAVA_OPTS
          value: -Xmx2000M
        envFrom:
        - configMapRef:
            name: init-env
        livenessProbe:
          failureThreshold: 5
          httpGet:
            path: /health
            port: 7002
            scheme: HTTP
          initialDelaySeconds: 600
          periodSeconds: 3
          successThreshold: 1
          timeoutSeconds: 1
        readinessProbe:
          failureThreshold: 5
          httpGet:
            path: /health
            port: 7002
            scheme: HTTP
          initialDelaySeconds: 180
          periodSeconds: 3
          successThreshold: 5
          timeoutSeconds: 1
        securityContext:
          runAsUser: 0
        volumeMounts:
        - mountPath: /etc/podinfo
          name: podinfo
        - mountPath: /home/spinnaker/.aws
          name: credentials
        - mountPath: /opt/spinnaker/credentials/custom
          name: default-kubeconfig
        - mountPath: /opt/spinnaker/config/default
          name: default-config
        - mountPath: /opt/spinnaker/config/custom
          name: custom-config
      imagePullSecrets:
      - name: harbor
      volumes:
      - configMap:
          defaultMode: 420
          name: default-kubeconfig
        name: default-kubeconfig
      - configMap:
          defaultMode: 420
          name: custom-config
        name: custom-config
      - configMap:
          defaultMode: 420
          name: default-config
        name: default-config
      - name: credentials
        secret:
          defaultMode: 420
          secretName: credentials
      - downwardAPI:
          defaultMode: 420
          items:
          - fieldRef:
              apiVersion: v1
              fieldPath: metadata.labels
            path: labels
          - fieldRef:
              apiVersion: v1
              fieldPath: metadata.annotations
            path: annotations
        name: podinfo

Service

[root@shkf6-245 k8s-yaml]# vi /data/k8s-yaml/armory/clouddriver/svc.yaml
[root@shkf6-245 k8s-yaml]# cat /data/k8s-yaml/armory/clouddriver/svc.yaml
apiVersion: v1
kind: Service
metadata:
  name: armory-clouddriver
  namespace: armory
spec:
  ports:
  - port: 7002
    protocol: TCP
    targetPort: 7002
  selector:
    app: armory-clouddriver

5.应用资源配置清单

在任意一台运算节点

[root@shkf6-245 ~]# cd /data/k8s-yaml/armory/clouddriver/
[root@shkf6-245 clouddriver]# kubectl apply -f ./
configmap/custom-config created
configmap/default-config created
deployment.extensions/armory-clouddriver created
configmap/init-env created
service/armory-clouddriver created

6.检查

准备配置文件

[root@shkf6-243 ~]# cat nginx-armory.yaml
apiVersion: extensions/v1beta1
kind: Deployment
metadata:
  name: nginx-armory
  namespace: armory
spec:
  template:
    metadata:
      labels:
        app: nginx-armory
    spec:
      containers:
      - name: my-nginx
        image: harbor.od.com/public/nginx:curl
        command: ["nginx","-g","daemon off;"]
        ports:
        - containerPort: 80

应用配置文件

[root@shkf6-243 ~]# kubectl apply -f nginx-armory.yaml
deployment.extensions/nginx-armory created

验证clouddriver

[root@shkf6-243 ~]# kubectl exec -it armory-clouddriver-5f6cff8bb8-hmhrk bash -n armory
bash-4.4# exit
[root@shkf6-243 ~]# kubectl exec -it nginx-armory-cb6cfdfd-5lcsr bash -n armory
root@nginx-armory-cb6cfdfd-5lcsr:/# curl armory-clouddriver:7002/health
{"status":"UP","kubernetes":{"status":"UP"},"redisHealth":{"status":"UP","maxIdle":100,"minIdle":25,"numActive":0,"numIdle":4,"numWaiters":0},"dockerRegistry":{"status":"UP"},"diskSpace":{"status":"UP","total":44550057984,"free":35043196928,"threshold":10485760}}

4.部署数据持久化组件—Front50

在运维主机shkf6-245.host.com上

1.准备镜像

镜像下载地址

[root@shkf6-245 clouddriver]# docker pull docker.io/armory/spinnaker-front50-slim:release-1.8.x-93febf2

[root@shkf6-245 clouddriver]# docker images | grep front50
armory/spinnaker-front50-slim                     release-1.8.x-93febf2      0d353788f4f2        15 months ago       273MB

[root@shkf6-245 clouddriver]# docker tag 0d353788f4f2 harbor.od.com/armory/front50:v1.8.x
[root@shkf6-245 clouddriver]# docker push harbor.od.com/armory/front50:v1.8.x

2.准备资源配置清单

Deployment

[root@shkf6-245 armory]# mkdir /data/k8s-yaml/armory/front50
[root@shkf6-245 armory]# vi /data/k8s-yaml/armory/front50/dp.yaml
[root@shkf6-245 armory]# cat /data/k8s-yaml/armory/front50/dp.yaml
apiVersion: extensions/v1beta1
kind: Deployment
metadata:
  labels:
    app: armory-front50
  name: armory-front50
  namespace: armory
spec:
  replicas: 1
  revisionHistoryLimit: 7
  selector:
    matchLabels:
      app: armory-front50
  template:
    metadata:
      annotations:
        artifact.spinnaker.io/location: '"armory"'
        artifact.spinnaker.io/name: '"armory-front50"'
        artifact.spinnaker.io/type: '"kubernetes/deployment"'
        moniker.spinnaker.io/application: '"armory"'
        moniker.spinnaker.io/cluster: '"front50"'
      labels:
        app: armory-front50
    spec:
      containers:
      - name: armory-front50
        image: harbor.od.com/armory/front50:v1.8.x
        imagePullPolicy: IfNotPresent
        command:
        - bash
        - -c
        args:
        - bash /opt/spinnaker/config/default/fetch.sh && cd /home/spinnaker/config
          && /opt/front50/bin/front50
        ports:
        - containerPort: 8080
          protocol: TCP
        env:
        - name: JAVA_OPTS
          value: -javaagent:/opt/front50/lib/jamm-0.2.5.jar -Xmx1000M
        envFrom:
        - configMapRef:
            name: init-env
        livenessProbe:
          failureThreshold: 3
          httpGet:
            path: /health
            port: 8080
            scheme: HTTP
          initialDelaySeconds: 600
          periodSeconds: 3
          successThreshold: 1
          timeoutSeconds: 1
        readinessProbe:
          failureThreshold: 3
          httpGet:
            path: /health
            port: 8080
            scheme: HTTP
          initialDelaySeconds: 180
          periodSeconds: 5
          successThreshold: 8
          timeoutSeconds: 1
        volumeMounts:
        - mountPath: /etc/podinfo
          name: podinfo
        - mountPath: /home/spinnaker/.aws
          name: credentials
        - mountPath: /opt/spinnaker/config/default
          name: default-config
        - mountPath: /opt/spinnaker/config/custom
          name: custom-config
      imagePullSecrets:
      - name: harbor
      volumes:
      - configMap:
          defaultMode: 420
          name: custom-config
        name: custom-config
      - configMap:
          defaultMode: 420
          name: default-config
        name: default-config
      - name: credentials
        secret:
          defaultMode: 420
          secretName: credentials
      - downwardAPI:
          defaultMode: 420
          items:
          - fieldRef:
              apiVersion: v1
              fieldPath: metadata.labels
            path: labels
          - fieldRef:
              apiVersion: v1
              fieldPath: metadata.annotations
            path: annotations
        name: podinfo

Service

[root@shkf6-245 armory]# vi /data/k8s-yaml/armory/front50/svc.yaml
[root@shkf6-245 armory]# cat /data/k8s-yaml/armory/front50/svc.yaml
apiVersion: v1
kind: Service
metadata:
  name: armory-front50
  namespace: armory
spec:
  ports:
  - port: 8080
    protocol: TCP
    targetPort: 8080
  selector:
    app: armory-front50

3.应用资源清单

[root@shkf6-245 armory]# kubectl apply -f ./front50/
deployment.extensions/armory-front50 created
service/armory-front50 created

4.檢查：

[root@shkf6-243 ~]# kubectl exec -it nginx-armory-cb6cfdfd-5lcsr bash -n armory
root@nginx-armory-cb6cfdfd-5lcsr:/# curl armory-front50:8080/health
{"status":"UP"}

5.浏览器访问

http://minio.od.com 登录并观察存储是否创建（已創建）

[root@shkf6-245 armory]# ll /data/nfs-volume/minio/
total 0
drwxr-xr-x 2 root root 6 Jan 10 15:26 armory-platform

5.部署任务编排组件–Orca

运维主机shkf6-245.host.com

1.准备docker镜像

镜像下载地址

[root@shkf6-245 armory]# docker pull docker.io/armory/spinnaker-orca-slim:release-1.8.x-de4ab55

[root@shkf6-245 armory]# docker images | grep orca
armory/spinnaker-orca-slim                        release-1.8.x-de4ab55      5103b1f73e04        15 months ago       141MB

[root@shkf6-245 armory]# docker tag 5103b1f73e04 harbor.od.com/armory/orca:v1.8.x
[root@shkf6-245 armory]# docker push harbor.od.com/armory/orca:v1.8.x

2.准备资源配置清单

Deployment

[root@shkf6-245 armory]# mkdir /data/k8s-yaml/armory/orca
[root@shkf6-245 armory]# vi /data/k8s-yaml/armory/orca/dp.yaml
[root@shkf6-245 armory]# cat /data/k8s-yaml/armory/orca/dp.yaml
apiVersion: extensions/v1beta1
kind: Deployment
metadata:
  labels:
    app: armory-orca
  name: armory-orca
  namespace: armory
spec:
  replicas: 1
  revisionHistoryLimit: 7
  selector:
    matchLabels:
      app: armory-orca
  template:
    metadata:
      annotations:
        artifact.spinnaker.io/location: '"armory"'
        artifact.spinnaker.io/name: '"armory-orca"'
        artifact.spinnaker.io/type: '"kubernetes/deployment"'
        moniker.spinnaker.io/application: '"armory"'
        moniker.spinnaker.io/cluster: '"orca"'
      labels:
        app: armory-orca
    spec:
      containers:
      - name: armory-orca
        image: harbor.od.com/armory/orca:v1.8.x
        imagePullPolicy: IfNotPresent
        command:
        - bash
        - -c
        args:
        - bash /opt/spinnaker/config/default/fetch.sh && cd /home/spinnaker/config
          && /opt/orca/bin/orca
        ports:
        - containerPort: 8083
          protocol: TCP
        env:
        - name: JAVA_OPTS
          value: -Xmx1000M
        envFrom:
        - configMapRef:
            name: init-env
        livenessProbe:
          failureThreshold: 5
          httpGet:
            path: /health
            port: 8083
            scheme: HTTP
          initialDelaySeconds: 600
          periodSeconds: 5
          successThreshold: 1
          timeoutSeconds: 1
        readinessProbe:
          failureThreshold: 3
          httpGet:
            path: /health
            port: 8083
            scheme: HTTP
          initialDelaySeconds: 180
          periodSeconds: 3
          successThreshold: 5
          timeoutSeconds: 1
        volumeMounts:
        - mountPath: /etc/podinfo
          name: podinfo
        - mountPath: /opt/spinnaker/config/default
          name: default-config
        - mountPath: /opt/spinnaker/config/custom
          name: custom-config
      imagePullSecrets:
      - name: harbor
      volumes:
      - configMap:
          defaultMode: 420
          name: custom-config
        name: custom-config
      - configMap:
          defaultMode: 420
          name: default-config
        name: default-config
      - downwardAPI:
          defaultMode: 420
          items:
          - fieldRef:
              apiVersion: v1
              fieldPath: metadata.labels
            path: labels
          - fieldRef:
              apiVersion: v1
              fieldPath: metadata.annotations
            path: annotations
        name: podinfo

Service

[root@shkf6-245 armory]# vi /data/k8s-yaml/armory/orca/svc.yaml
[root@shkf6-245 armory]# cat /data/k8s-yaml/armory/orca/svc.yaml
apiVersion: v1
kind: Service
metadata:
  name: armory-orca
  namespace: armory
spec:
  ports:
  - port: 8083
    protocol: TCP
    targetPort: 8083
  selector:
    app: armory-orca

3.应用资源配置清单

[root@shkf6-245 armory]# kubectl apply -f ./orca/
deployment.extensions/armory-orca created
service/armory-orca created

4.檢查：

[root@shkf6-243 ~]# kubectl exec -it nginx-armory-cb6cfdfd-5lcsr bash -n armory
root@nginx-armory-cb6cfdfd-5lcsr:/# curl armory-orca:8083/health
{"status":"UP"}

6.部署消息总线组件–Echo

1.准备镜像

[root@shkf6-245 armory]# docker pull docker.io/armory/echo-armory:c36d576-release-1.8.x-617c567

[root@shkf6-245 armory]# docker images|grep echo
armory/echo-armory                                c36d576-release-1.8.x-617c567   415efd46f474        18 months ago       287MB

[root@shkf6-245 armory]# docker tag 415efd46f474 harbor.od.com/armory/echo:v1.8.x
[root@shkf6-245 armory]# docker push harbor.od.com/armory/echo:v1.8.x

2.准备资源配置清单

Deployment

[root@shkf6-245 armory]# mkdir /data/k8s-yaml/armory/echo
mkdir: cannot create directory ‘/data/k8s-yaml/armory/echo’: File exists
[root@shkf6-245 armory]# vi /data/k8s-yaml/armory/echo/dp.yaml
[root@shkf6-245 armory]# cat /data/k8s-yaml/armory/echo/dp.yaml
apiVersion: extensions/v1beta1
kind: Deployment
metadata:
  labels:
    app: armory-echo
  name: armory-echo
  namespace: armory
spec:
  replicas: 1
  revisionHistoryLimit: 7
  selector:
    matchLabels:
      app: armory-echo
  template:
    metadata:
      annotations:
        artifact.spinnaker.io/location: '"armory"'
        artifact.spinnaker.io/name: '"armory-echo"'
        artifact.spinnaker.io/type: '"kubernetes/deployment"'
        moniker.spinnaker.io/application: '"armory"'
        moniker.spinnaker.io/cluster: '"echo"'
      labels:
        app: armory-echo
    spec:
      containers:
      - name: armory-echo
        image: harbor.od.com/armory/echo:v1.8.x
        imagePullPolicy: IfNotPresent
        command:
        - bash
        - -c
        args:
        - bash /opt/spinnaker/config/default/fetch.sh && cd /home/spinnaker/config
          && /opt/echo/bin/echo
        ports:
        - containerPort: 8089
          protocol: TCP
        env:
        - name: JAVA_OPTS
          value: -javaagent:/opt/echo/lib/jamm-0.2.5.jar -Xmx1000M
        envFrom:
        - configMapRef:
            name: init-env
        livenessProbe:
          failureThreshold: 3
          httpGet:
            path: /health
            port: 8089
            scheme: HTTP
          initialDelaySeconds: 600
          periodSeconds: 3
          successThreshold: 1
          timeoutSeconds: 1
        readinessProbe:
          failureThreshold: 3
          httpGet:
            path: /health
            port: 8089
            scheme: HTTP
          initialDelaySeconds: 180
          periodSeconds: 3
          successThreshold: 5
          timeoutSeconds: 1
        volumeMounts:
        - mountPath: /etc/podinfo
          name: podinfo
        - mountPath: /opt/spinnaker/config/default
          name: default-config
        - mountPath: /opt/spinnaker/config/custom
          name: custom-config
      imagePullSecrets:
      - name: harbor
      volumes:
      - configMap:
          defaultMode: 420
          name: custom-config
        name: custom-config
      - configMap:
          defaultMode: 420
          name: default-config
        name: default-config
      - downwardAPI:
          defaultMode: 420
          items:
          - fieldRef:
              apiVersion: v1
              fieldPath: metadata.labels
            path: labels
          - fieldRef:
              apiVersion: v1
              fieldPath: metadata.annotations
            path: annotations
        name: podinfo

Service

[root@shkf6-245 armory]# vi /data/k8s-yaml/armory/echo/svc.yaml
[root@shkf6-245 armory]# cat /data/k8s-yaml/armory/echo/svc.yaml
apiVersion: v1
kind: Service
metadata:
  name: armory-echo
  namespace: armory
spec:
  ports:
  - port: 8089
    protocol: TCP
    targetPort: 8089
  selector:
    app: armory-echo

3.应用资源配置清单

[root@shkf6-245 armory]# kubectl apply -f ./echo/
deployment.extensions/armory-echo created
service/armory-echo created

7.部署流水线交互组件–lgor

1.准备镜像

[root@shkf6-245 armory]# docker pull docker.io/armory/spinnaker-igor-slim:release-1.8-x-new-install-healthy-ae2b329

[root@shkf6-245 armory]# docker images |grep igor
armory/spinnaker-igor-slim                        release-1.8-x-new-install-healthy-ae2b329   23984f5b43f6        18 months ago       135MB

[root@shkf6-245 armory]# docker tag 23984f5b43f6 harbor.od.com/armory/igor:v1.8.x
[root@shkf6-245 armory]# docker push harbor.od.com/armory/igor:v1.8.x

2.准备资源配置清单

Deployment

[root@shkf6-245 armory]# mkdir /data/k8s-yaml/armory/igor
[root@shkf6-245 armory]# vi /data/k8s-yaml/armory/igor/dp.yaml
[root@shkf6-245 armory]# cat /data/k8s-yaml/armory/igor/dp.yaml
apiVersion: extensions/v1beta1
kind: Deployment
metadata:
  labels:
    app: armory-igor
  name: armory-igor
  namespace: armory
spec:
  replicas: 1
  revisionHistoryLimit: 7
  selector:
    matchLabels:
      app: armory-igor
  template:
    metadata:
      annotations:
        artifact.spinnaker.io/location: '"armory"'
        artifact.spinnaker.io/name: '"armory-igor"'
        artifact.spinnaker.io/type: '"kubernetes/deployment"'
        moniker.spinnaker.io/application: '"armory"'
        moniker.spinnaker.io/cluster: '"igor"'
      labels:
        app: armory-igor
    spec:
      containers:
      - name: armory-igor
        image: harbor.od.com/armory/igor:v1.8.x
        imagePullPolicy: IfNotPresent
        command:
        - bash
        - -c
        args:
        - bash /opt/spinnaker/config/default/fetch.sh && cd /home/spinnaker/config
          && /opt/igor/bin/igor
        ports:
        - containerPort: 8088
          protocol: TCP
        env:
        - name: IGOR_PORT_MAPPING
          value: -8088:8088
        - name: JAVA_OPTS
          value: -Xmx1000M
        envFrom:
        - configMapRef:
            name: init-env
        livenessProbe:
          failureThreshold: 3
          httpGet:
            path: /health
            port: 8088
            scheme: HTTP
          initialDelaySeconds: 600
          periodSeconds: 3
          successThreshold: 1
          timeoutSeconds: 1
        readinessProbe:
          failureThreshold: 3
          httpGet:
            path: /health
            port: 8088
            scheme: HTTP
          initialDelaySeconds: 180
          periodSeconds: 5
          successThreshold: 5
          timeoutSeconds: 1
        volumeMounts:
        - mountPath: /etc/podinfo
          name: podinfo
        - mountPath: /opt/spinnaker/config/default
          name: default-config
        - mountPath: /opt/spinnaker/config/custom
          name: custom-config
      imagePullSecrets:
      - name: harbor
      securityContext:
        runAsUser: 0
      volumes:
      - configMap:
          defaultMode: 420
          name: custom-config
        name: custom-config
      - configMap:
          defaultMode: 420
          name: default-config
        name: default-config
      - downwardAPI:
          defaultMode: 420
          items:
          - fieldRef:
              apiVersion: v1
              fieldPath: metadata.labels
            path: labels
          - fieldRef:
              apiVersion: v1
              fieldPath: metadata.annotations
            path: annotations
        name: podinfo

Service

[root@shkf6-245 armory]# vi /data/k8s-yaml/armory/igor/svc.yaml
[root@shkf6-245 armory]# cat /data/k8s-yaml/armory/igor/svc.yaml
apiVersion: v1
kind: Service
metadata:
  name: armory-igor
  namespace: armory
spec:
  ports:
  - port: 8088
    protocol: TCP
    targetPort: 8088
  selector:
    app: armory-igor

3.应用资源配置清单

[root@shkf6-245 armory]# kubectl apply -f ./igor/
deployment.extensions/armory-igor created
service/armory-igor created

8.部署api提供组件–Gate

1.准备镜像

[root@shkf6-245 armory]# docker pull docker.io/armory/gate-armory:dfafe73-release-1.8.x-5d505ca

[root@shkf6-245 armory]# docker images | grep gate
armory/gate-armory                                dfafe73-release-1.8.x-5d505ca               b092d4665301        18 months ago       179MB

[root@shkf6-245 armory]# docker tag b092d4665301 harbor.od.com/armory/gate:v1.8.x
[root@shkf6-245 armory]# docker push harbor.od.com/armory/gate:v1.8.x

2.准备资源配置清单

Deployment

[root@shkf6-245 armory]# mkdir /data/k8s-yaml/armory/gate
[root@shkf6-245 armory]# vi /data/k8s-yaml/armory/gate/dp.yaml
[root@shkf6-245 armory]# cat /data/k8s-yaml/armory/gate/dp.yaml
apiVersion: extensions/v1beta1
kind: Deployment
metadata:
  labels:
    app: armory-gate
  name: armory-gate
  namespace: armory
spec:
  replicas: 1
  revisionHistoryLimit: 7
  selector:
    matchLabels:
      app: armory-gate
  template:
    metadata:
      annotations:
        artifact.spinnaker.io/location: '"armory"'
        artifact.spinnaker.io/name: '"armory-gate"'
        artifact.spinnaker.io/type: '"kubernetes/deployment"'
        moniker.spinnaker.io/application: '"armory"'
        moniker.spinnaker.io/cluster: '"gate"'
      labels:
        app: armory-gate
    spec:
      containers:
      - name: armory-gate
        image: harbor.od.com/armory/gate:v1.8.x
        imagePullPolicy: IfNotPresent
        command:
        - bash
        - -c
        args:
        - bash /opt/spinnaker/config/default/fetch.sh gate && cd /home/spinnaker/config
          && /opt/gate/bin/gate
        ports:
        - containerPort: 8084
          name: gate-port
          protocol: TCP
        - containerPort: 8085
          name: gate-api-port
          protocol: TCP
        env:
        - name: GATE_PORT_MAPPING
          value: -8084:8084
        - name: GATE_API_PORT_MAPPING
          value: -8085:8085
        - name: JAVA_OPTS
          value: -Xmx1000M
        envFrom:
        - configMapRef:
            name: init-env
        livenessProbe:
          exec:
            command:
            - /bin/bash
            - -c
            - wget -O - http://localhost:8084/health || wget -O - https://localhost:8084/health
          failureThreshold: 5
          initialDelaySeconds: 600
          periodSeconds: 5
          successThreshold: 1
          timeoutSeconds: 1
        readinessProbe:
          exec:
            command:
            - /bin/bash
            - -c
            - wget -O - http://localhost:8084/health?checkDownstreamServices=true&downstreamServices=true
              || wget -O - https://localhost:8084/health?checkDownstreamServices=true&downstreamServices=true
          failureThreshold: 3
          initialDelaySeconds: 180
          periodSeconds: 5
          successThreshold: 10
          timeoutSeconds: 1
        volumeMounts:
        - mountPath: /etc/podinfo
          name: podinfo
        - mountPath: /opt/spinnaker/config/default
          name: default-config
        - mountPath: /opt/spinnaker/config/custom
          name: custom-config
      imagePullSecrets:
      - name: harbor
      securityContext:
        runAsUser: 0
      volumes:
      - configMap:
          defaultMode: 420
          name: custom-config
        name: custom-config
      - configMap:
          defaultMode: 420
          name: default-config
        name: default-config
      - downwardAPI:
          defaultMode: 420
          items:
          - fieldRef:
              apiVersion: v1
              fieldPath: metadata.labels
            path: labels
          - fieldRef:
              apiVersion: v1
              fieldPath: metadata.annotations
            path: annotations
        name: podinfo

Service

[root@shkf6-245 armory]# vi /data/k8s-yaml/armory/gate/svc.yaml
[root@shkf6-245 armory]# cat /data/k8s-yaml/armory/gate/svc.yaml
apiVersion: v1
kind: Service
metadata:
  name: armory-gate
  namespace: armory
spec:
  ports:
  - name: gate-port
    port: 8084
    protocol: TCP
    targetPort: 8084
  - name: gate-api-port
    port: 8085
    protocol: TCP
    targetPort: 8085
  selector:
    app: armory-gate

3.应用资源配置清单

[root@shkf6-245 armory]# kubectl apply -f ./gate/
deployment.extensions/armory-gate created
service/armory-gate created

4.检查

root@nginx-armory-cb6cfdfd-5lcsr:/# curl armory-gate:8084/health
{"status":"UP"}

9.部署前端网站项目–Deck

1.准备docker镜像

[root@shkf6-245 armory]# docker pull docker.io/armory/deck-armory:d4bf0cf-release-1.8.x-0a33f94

[root@shkf6-245 armory]# docker images |grep deck
armory/deck-armory                                d4bf0cf-release-1.8.x-0a33f94               9a87ba3b319f        18 months ago       518MB

[root@shkf6-245 armory]# docker tag 9a87ba3b319f harbor.od.com/armory/deck:v1.8.x
[root@shkf6-245 armory]# docker push harbor.od.com/armory/deck:v1.8.x

2.准备资源配置清单

Deployment

[root@shkf6-245 armory]# mkdir /data/k8s-yaml/armory/deck
[root@shkf6-245 armory]# vi /data/k8s-yaml/armory/deck/dp.yaml
[root@shkf6-245 armory]# cat /data/k8s-yaml/armory/deck/dp.yaml
apiVersion: extensions/v1beta1
kind: Deployment
metadata:
  labels:
    app: armory-deck
  name: armory-deck
  namespace: armory
spec:
  replicas: 1
  revisionHistoryLimit: 7
  selector:
    matchLabels:
      app: armory-deck
  template:
    metadata:
      annotations:
        artifact.spinnaker.io/location: '"armory"'
        artifact.spinnaker.io/name: '"armory-deck"'
        artifact.spinnaker.io/type: '"kubernetes/deployment"'
        moniker.spinnaker.io/application: '"armory"'
        moniker.spinnaker.io/cluster: '"deck"'
      labels:
        app: armory-deck
    spec:
      containers:
      - name: armory-deck
        image: harbor.od.com/armory/deck:v1.8.x
        imagePullPolicy: IfNotPresent
        command:
        - bash
        - -c
        args:
        - bash /opt/spinnaker/config/default/fetch.sh && /entrypoint.sh
        ports:
        - containerPort: 9000
          protocol: TCP
        envFrom:
        - configMapRef:
            name: init-env
        livenessProbe:
          failureThreshold: 3
          httpGet:
            path: /
            port: 9000
            scheme: HTTP
          initialDelaySeconds: 180
          periodSeconds: 3
          successThreshold: 1
          timeoutSeconds: 1
        readinessProbe:
          failureThreshold: 5
          httpGet:
            path: /
            port: 9000
            scheme: HTTP
          initialDelaySeconds: 30
          periodSeconds: 3
          successThreshold: 5
          timeoutSeconds: 1
        volumeMounts:
        - mountPath: /etc/podinfo
          name: podinfo
        - mountPath: /opt/spinnaker/config/default
          name: default-config
        - mountPath: /opt/spinnaker/config/custom
          name: custom-config
      imagePullSecrets:
      - name: harbor
      volumes:
      - configMap:
          defaultMode: 420
          name: custom-config
        name: custom-config
      - configMap:
          defaultMode: 420
          name: default-config
        name: default-config
      - downwardAPI:
          defaultMode: 420
          items:
          - fieldRef:
              apiVersion: v1
              fieldPath: metadata.labels
            path: labels
          - fieldRef:
              apiVersion: v1
              fieldPath: metadata.annotations
            path: annotations
        name: podinfo

Service

[root@shkf6-245 armory]# vi /data/k8s-yaml/armory/deck/svc.yaml
[root@shkf6-245 armory]# cat /data/k8s-yaml/armory/deck/svc.yaml
apiVersion: v1
kind: Service
metadata:
  name: armory-deck
  namespace: armory
spec:
  ports:
  - port: 80
    protocol: TCP
    targetPort: 9000
  selector:
    app: armory-deck

3.应用资源配置清单

[root@shkf6-245 armory]# kubectl apply -f ./deck/
deployment.extensions/armory-deck created
service/armory-deck created

10.部署前端代理–Nginx

1.准备docker镜像

[root@shkf6-245 armory]# docker pull nginx:1.12.2

[root@shkf6-245 armory]# docker images | grep nginx
goharbor/nginx-photon                             v1.8.3                                      3a016e0dc7de        3 months ago        37MB
nginx                                             1.12.2                                      4037a5562b03        20 months ago       108MB
sunrisenan/nginx                                  v1.12.2                                     4037a5562b03        20 months ago       108MB
nginx                                             1.7.9                                       84581e99d807        4 years ago         91.7MB
harbor.od.com/public/nginx                        v1.7.9                                      84581e99d807        4 years ago         91.7MB
[root@shkf6-245 armory]# docker tag 4037a5562b03 harbor.od.com/armory/nginx:v1.12.2
[root@shkf6-245 armory]# docker push harbor.od.com/armory/nginx:v1.12.2

2.准备资源配置清单

Deployment

[root@shkf6-245 armory]# mkdir /data/k8s-yaml/armory/nginx
[root@shkf6-245 armory]# vi /data/k8s-yaml/armory/nginx/dp.yaml
[root@shkf6-245 armory]# cat /data/k8s-yaml/armory/nginx/dp.yaml
apiVersion: extensions/v1beta1
kind: Deployment
metadata:
  labels:
    app: armory-nginx
  name: armory-nginx
  namespace: armory
spec:
  replicas: 1
  revisionHistoryLimit: 7
  selector:
    matchLabels:
      app: armory-nginx
  template:
    metadata:
      annotations:
        artifact.spinnaker.io/location: '"armory"'
        artifact.spinnaker.io/name: '"armory-nginx"'
        artifact.spinnaker.io/type: '"kubernetes/deployment"'
        moniker.spinnaker.io/application: '"armory"'
        moniker.spinnaker.io/cluster: '"nginx"'
      labels:
        app: armory-nginx
    spec:
      containers:
      - name: armory-nginx
        image: harbor.od.com/armory/nginx:v1.12.2
        imagePullPolicy: Always
        command:
        - bash
        - -c
        args:
        - bash /opt/spinnaker/config/default/fetch.sh nginx && nginx -g 'daemon off;'
        ports:
        - containerPort: 80
          name: http
          protocol: TCP
        - containerPort: 443
          name: https
          protocol: TCP
        - containerPort: 8085
          name: api
          protocol: TCP
        livenessProbe:
          failureThreshold: 3
          httpGet:
            path: /
            port: 80
            scheme: HTTP
          initialDelaySeconds: 180
          periodSeconds: 3
          successThreshold: 1
          timeoutSeconds: 1
        readinessProbe:
          failureThreshold: 3
          httpGet:
            path: /
            port: 80
            scheme: HTTP
          initialDelaySeconds: 30
          periodSeconds: 3
          successThreshold: 5
          timeoutSeconds: 1
        volumeMounts:
        - mountPath: /opt/spinnaker/config/default
          name: default-config
        - mountPath: /etc/nginx/conf.d
          name: custom-config
      imagePullSecrets:
      - name: harbor
      volumes:
      - configMap:
          defaultMode: 420
          name: custom-config
        name: custom-config
      - configMap:
          defaultMode: 420
          name: default-config
        name: default-config

Service

[root@shkf6-245 armory]# vi /data/k8s-yaml/armory/nginx/svc.yaml
[root@shkf6-245 armory]# cat /data/k8s-yaml/armory/nginx/svc.yaml
apiVersion: v1
kind: Service
metadata:
  name: armory-nginx
  namespace: armory
spec:
  ports:
  - name: http
    port: 80
    protocol: TCP
    targetPort: 80
  - name: https
    port: 443
    protocol: TCP
    targetPort: 443
  - name: api
    port: 8085
    protocol: TCP
    targetPort: 8085
  selector:
    app: armory-nginx

Ingress

[root@shkf6-245 armory]# vi /data/k8s-yaml/armory/nginx/ingress.yaml
[root@shkf6-245 armory]# cat /data/k8s-yaml/armory/nginx/ingress.yaml
apiVersion: extensions/v1beta1
kind: Ingress
metadata:
  labels:
    app: spinnaker
    web: spinnaker.od.com
  name: armory-nginx
  namespace: armory
spec:
  rules:
  - host: spinnaker.od.com
    http:
      paths:
      - backend:
          serviceName: armory-nginx
          servicePort: 80

3.应用资源配置清单

[root@shkf6-245 armory]# kubectl apply -f ./nginx/
deployment.extensions/armory-nginx created
ingress.extensions/armory-nginx created
service/armory-nginx created

11.域名解析

[root@shkf6-241 ~]# tail -1 /var/named/od.com.zone
spinnaker          A    192.168.6.66

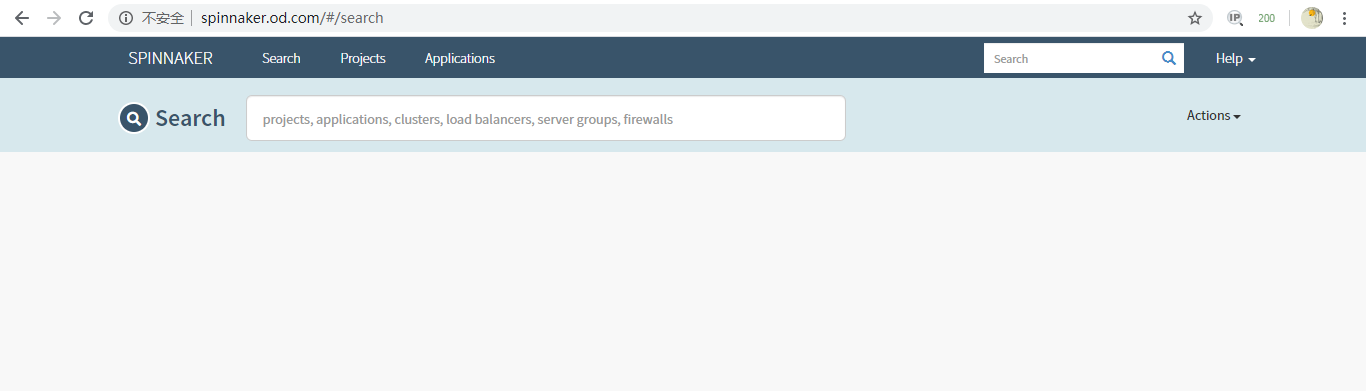

12.打开浏览器

http://spinnaker.od.com/

第五章：使用spinnaker结合jenkins构建镜像

1.使用spinnaker前期准备

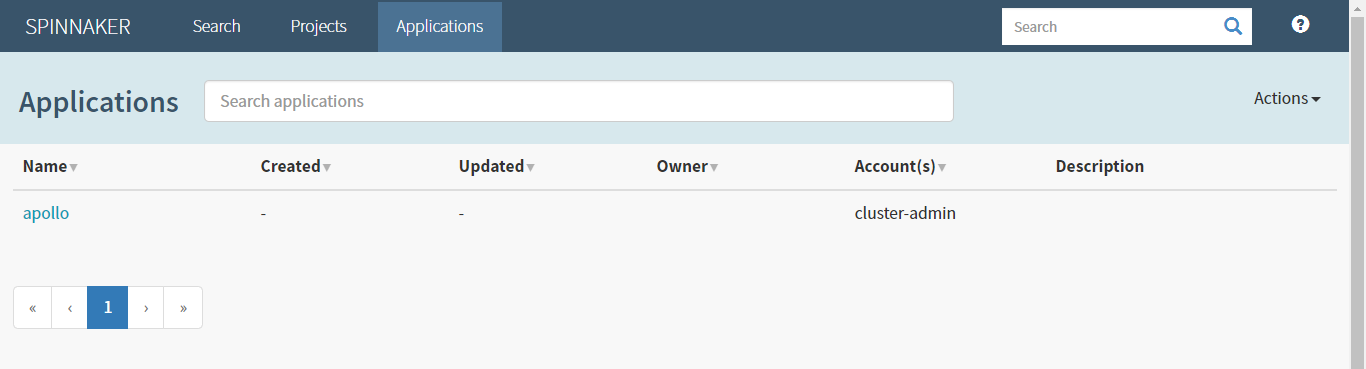

可以到看到aopplo、dubbo，这是前面在CloudDriver中custom-config.yaml 里配置了管理prod和test名称空间。

把dubbo项目从k8s集群中移除

[root@shkf6-245 k8s-yaml]# kubectl delete -f test/dubbo-demo-consumer/dp.yaml
deployment.extensions "dubbo-demo-consumer" deleted

[root@shkf6-245 k8s-yaml]# kubectl delete -f test/dubbo-demo-service/deployment.yaml
deployment.extensions "dubbo-demo-service" deleted


[root@shkf6-245 k8s-yaml]# kubectl delete -f prod/dubbo-demo-consumer/dp.yaml
deployment.extensions "dubbo-demo-consumer" deleted

[root@shkf6-245 k8s-yaml]# kubectl delete -f prod/dubbo-demo-service/deployment.yaml
deployment.extensions "dubbo-demo-service" deleted

刷新页面就没有了

2.使用spinnaker创建dubbo

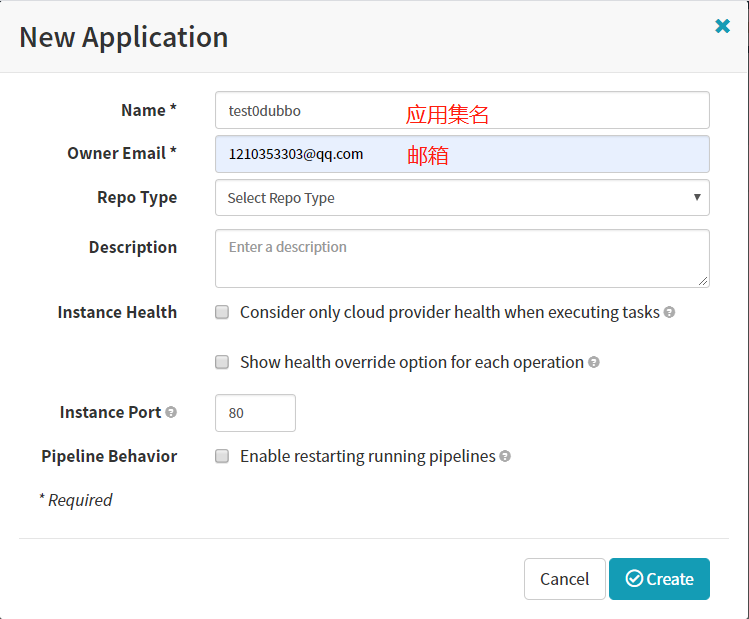

1.创建应用集

Application -> Actions -> CreateApplication
- Name

  test0dubbo
- Owner Emial

  1210353303@qq.com
Create

效果图

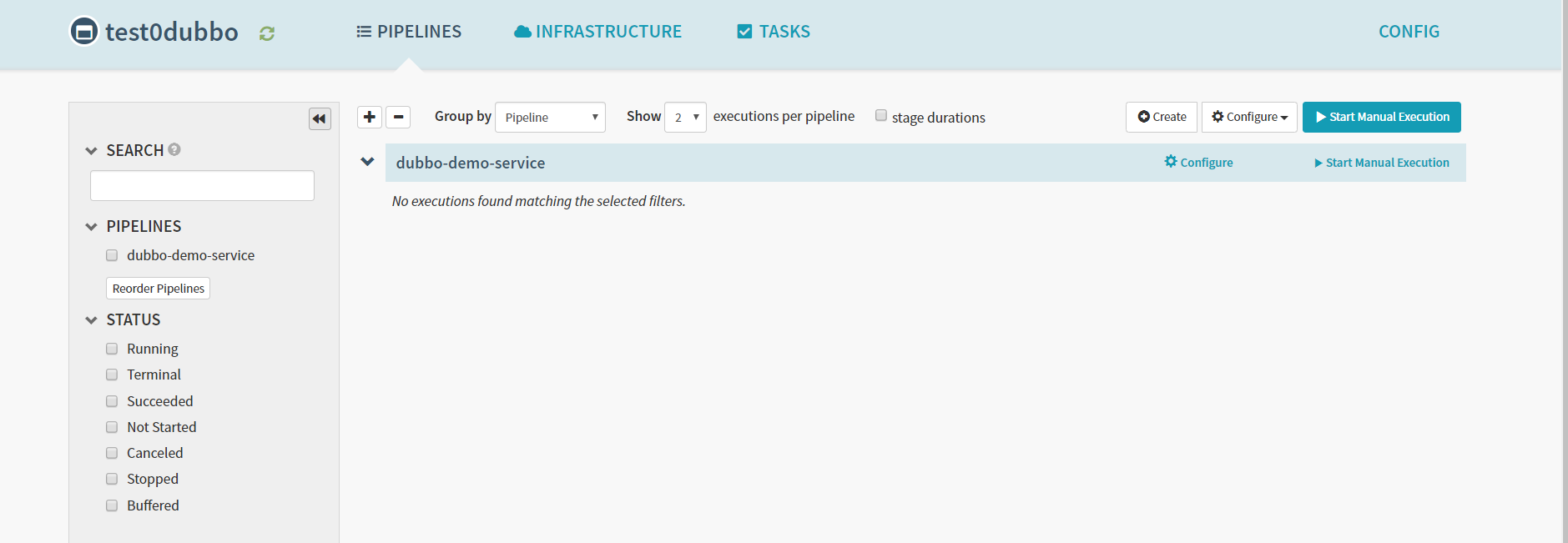

2.创建pipelines

PIPELINES -> Configure a new pipeline
- Type

  Pipeline
- Pipeline Name

  dubbo-demo-service
create

3.配置加4个参数

解释：Triggers触发器 Parameters选项 Artifacts手工 Notifications通知 Description描述

Parameters第一个参数
- Name

  git_ver
- Required

  打勾
Parameters第二个参数
- Name

  add_tag
- Required

  打勾
Parameters第三个参数
- Name

  app_name
- Required

  打勾
- Default Value

  dubbo-demo-service
Parameters第四个参数
- Name

  image_name
- Required

  打勾
- Default Value

  app/dubbo-demo-service
Save Changes

4.增加一个流水线的阶段

Add stage
- Type

  Jenkins
- Master

  jenkins-admin
- Job

  dubbo-demo
- add_tag

  ${ parameters.add_tag }
- app_name

  ${ parameters.app_name }
- base_image

  base/jre8:8u112_with_logs
- git_repo

  https://github.com/sunrisenan/dubbo-demo-service.git
- git_ver

  ${ parameters.git_ver }
- image_name

  ${ parameters.image_name }
- target_dir

  ./dubbo-server/target
Save Changes
PIPELIENS

5.运行流水线

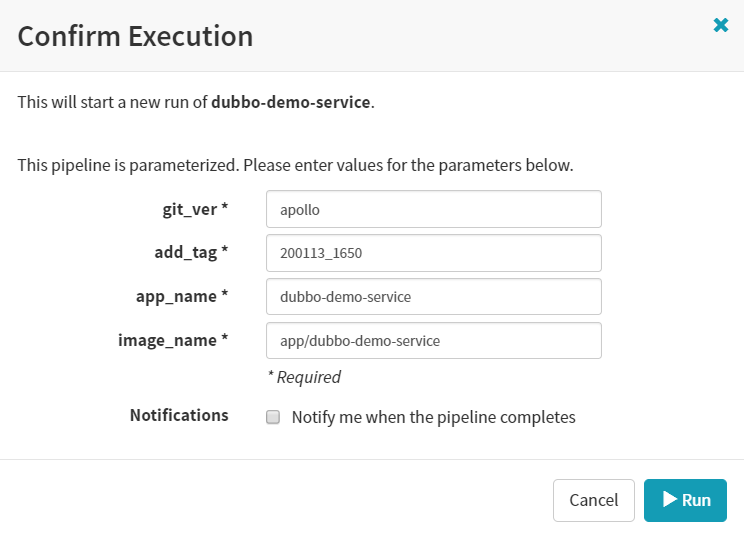

Start Manual Execution
- git_ver

  apollo
- add_tag

  200113_1650
RUN

效果演示：

第六章：实战配置、使用Spinnaker配置dubbo服务提供者项目

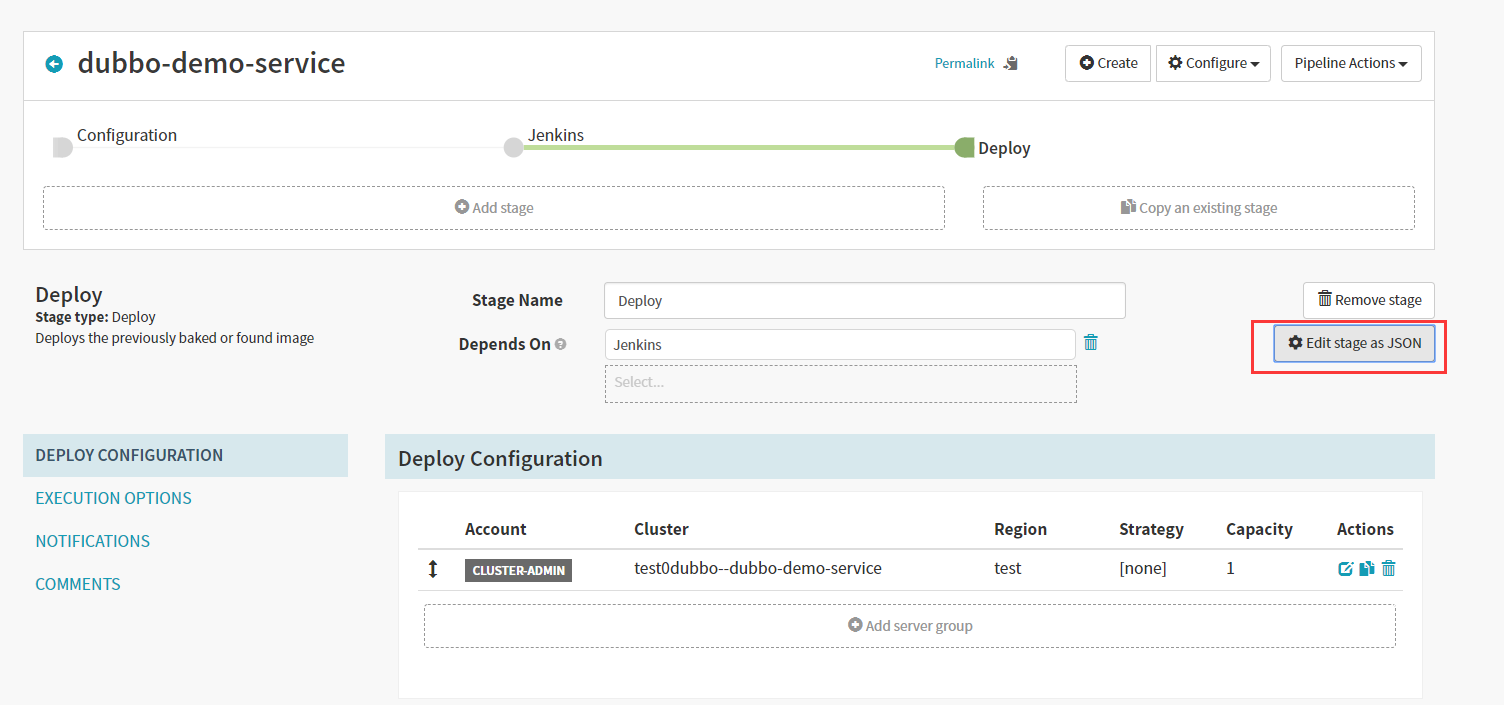

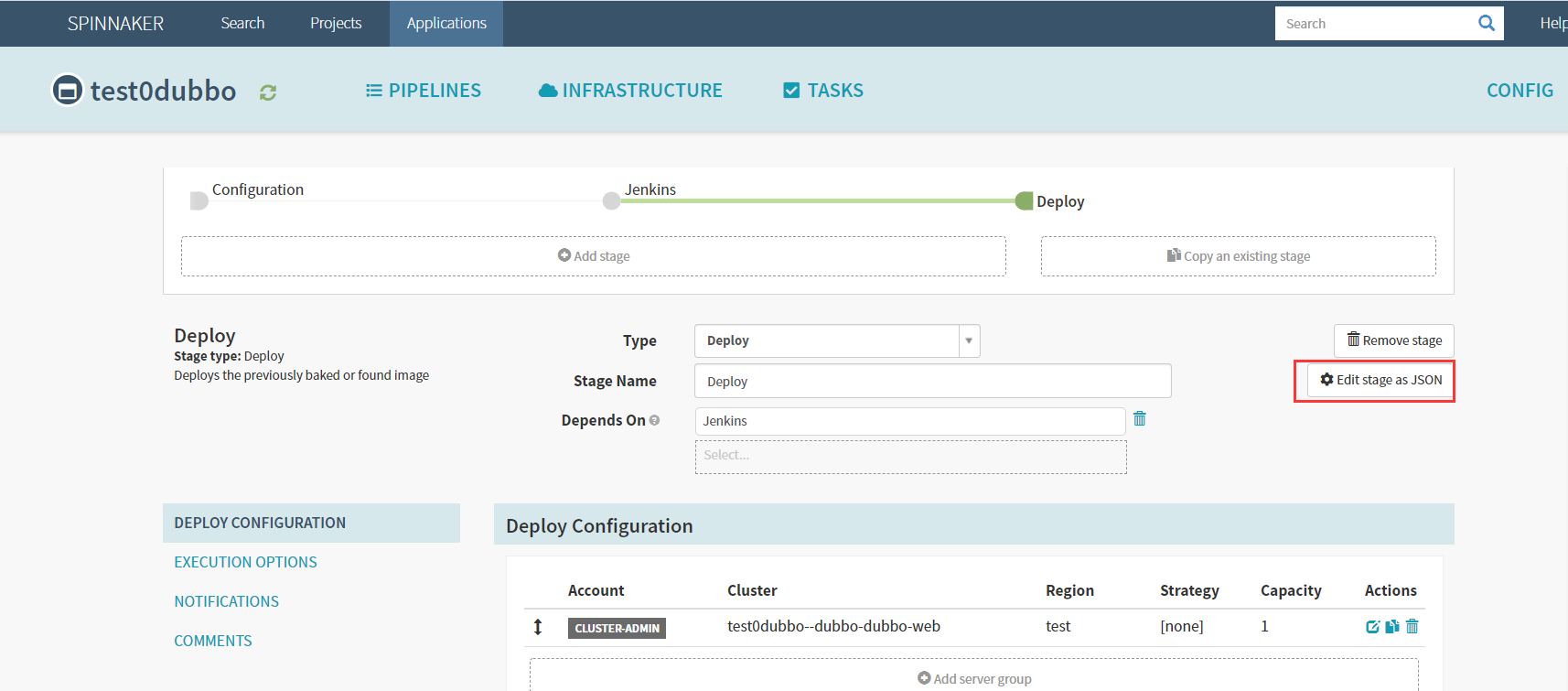

Application -> PIPELIENS -> Configure -> Add stage

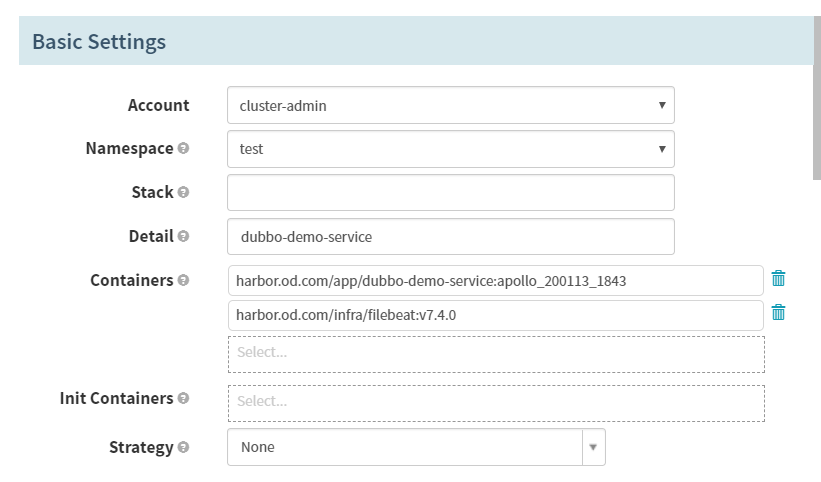

Basic Settings
- Type

  Deploy
- Stage Name

  Deploy

Add server group
- Account

  cluster-admin
- Namespace

  test
- Detail

  [项目名]dubbo-dubbo-service
- Containers

  harbor.od.com/app/dubbo-demo-service:apollo_200113_1843
  harbor.od.com/infra/filebeat:v7.4.0
- Strategy

  None

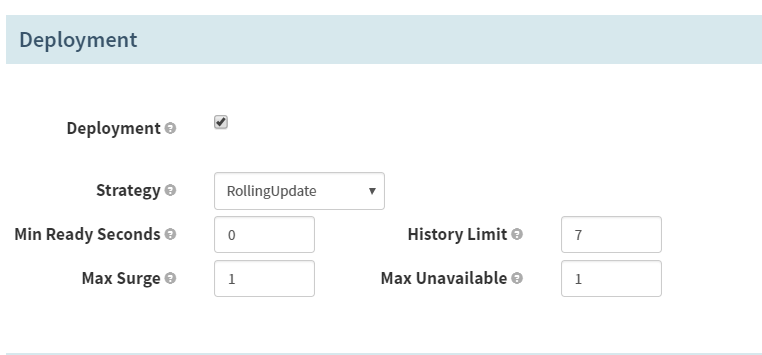

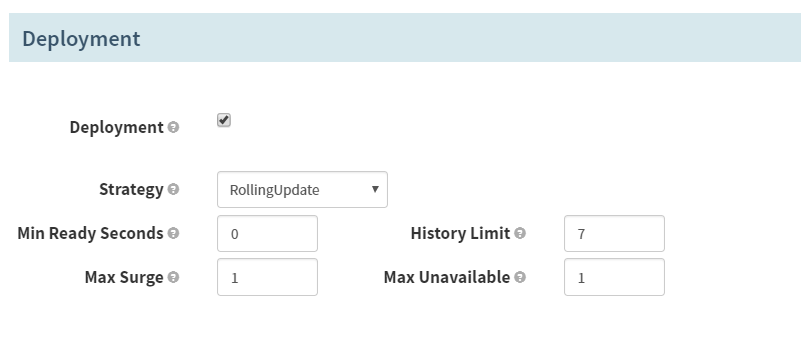

Deployment
- Deployment

  打勾
- Strategy

  RollingUpdate
- History Limit

  7

Replices
- Capacity

  1 (默认起一份)

Volume Sources -> Add Volume Source
- Volume Source

  EMPTYPE
- Name

  logm

Advanced Settings
- DNS Policy

  ClusterFirst
- Termination Grace Period

  30
- Pod Annotations
  - Key

    blackbox_scheme
  - Value

    tcp
  - Key

    blackbox_port
  - Value

    20880
  - Key

    prometheus_io_scrape
  - Value

    true
  - Key

    prometheus_io_path
  - Value

    /
  - Key

    prometheus_io_port
  - Value

    12346

配置第一个容器

Container -> Basic Settings -> Environment Variables -> Add Environment Variables
- Name

  JAR_BALL
- Source

  Explicit
- Value

  dubbo-server.jar
- Name

  C_OPTS
- Source

  Explicit
- Value

  -Denv=fat -Dapollo.meta=http://config-test.od.com
Volume Mounts
- Source Name

  logm
- Mount Path

  /opt/logs

配置第二个容器

Container -> Basic Settings -> Environment Variables -> Add Environment Variables
- Name

  ENV
- Source

  Explicit
- Value

  test
- Name

  PROJ_NAME
- Source

  Explicit
- Value

  dubbo-demo-service

VolumeMounts
- Source Name

  logm
- Mount Path

  /logm
Add
Save Changes

调整JSON，改为通用型

"imageId": "harbor.od.com/${parameters.image_name}:${parameters.git_ver}_${parameters.add_tag}",
"registry": "harbor.od.com",
"repository": "${parameters.image_name}",
"tag": "${parameters.git_ver}_${parameters.add_tag}"

Save Changes

第七章：实战配置、使用Spinnaker配置dubbo服务消费者项目

1.用test0dubbo应用集

2.创建pipelines

PIPELINES -> Create
- Type

  Pipeline
- Pipeline Name 注：名字要和gitlab项目名字一致

  dubbo-demo-web
- Copy From

  None
create

3.配置加4个参数

Parameters第一个参数
- Name

  git_ver
- Required

  打勾
Parameters第二个参数
- Name

  add_tag
- Required

  打勾
Parameters第三个参数
- Name

  app_name
- Required

  打勾
- Default Value

  dubbo-demo-web
Parameters第四个参数
- Name

  image_name
- Required

  打勾
- Default Value

  app/dubbo-demo-web
Save Changes

4.增加一个流水线的阶段

Add stage
- Type

  Jenkins
- Master

  jenkins-admin
- Job

  tomcat-demo
- add_tag

  ${ parameters.add_tag }
- app_name

  ${ parameters.app_name }
- base_image

  base/jre8:8u112_with_logs
- git_repo

  https://github.com/sunrisenan/dubbo-demo-web.git
- git_ver

  ${ parameters.git_ver }
- image_name

  ${ parameters.image_name }
- target_dir

  ./dubbo-server/target
Save Changes

5.server

Application -> INFRASTRUCTURE -> LOAD BALANCERS -> Create Load Balancer
- Basic Settings
  - Account

    cluster-admin
  - Namespace

    test
  - Detail

    demo-web
- Ports
  - Name

    http
  - Port

    80
  - Target Port

    8080
create

6.ingress

Application -> INFRASTRUCTURE -> FIREWALLS -> Create Firewall
Basic Settings
- Account

  cluster-admin
- Namespace

  test
- Detail

  dubbo-web
Rules -> Add New Rule
- Host

  demo-test.od.com
Add New Path
- Load Balancer

  test0dubbo-web
- Path

  /
- Port

  80
create

7.deploy

Application -> PIPELIENS -> Configure -> Add stage
Basic Settings
- Type

  Deploy
- Stage Name

  Deploy

Add server group
- Account

  cluster-admin
- Namespace

  test
- Detail

  [项目名]dubbo-dubbo-web
- Containers

  harbor.od.com/app/dubbo-demo-web:tomcat_200114_1613
  harbor.od.com/infra/filebeat:v7.4.0
- Strategy

  None

配置第一个容器

Container -> Basic Settings -> Environment Variables -> Add Environment Variables
- Name

  C_OPTS
- Source

  Explicit
- Value

  -Denv=fat -Dapollo.meta=http://config-test.od.com

配置第二个容器

更改为：

"imageId": "harbor.od.com/${parameters.image_name}:${parameters.git_ver}_${parameters.add_tag}",
"registry": "harbor.od.com",
"repository": "${parameters.image_name}",
"tag": "${parameters.git_ver}_${parameters.add_tag}"

Save Changes

第七章：实战使用Spinnaker进行灰度发布、金丝雀发布

文档更新时间: 2020-01-14 22:51 作者：李延召

第八篇：企业级k8s自动化运维平台

前情回顾

第一章：容器云概述

第二章：Spinnaker概述

1.主要功能

第三章：自动化运维平台架构详解

第四章：安装部署Spinnaker微服务集群

1.部署对象式存储组件—minio

1.下载镜像

2.准备资源配置清单

3.解析域名

4.应用资源配置清单

5.浏览器访问

2.部署缓存组件—Redis

1.准备docker镜像

2.准备资源配置清单

3.应用资源配置清单

3.部署k8s云驱动组件—CloudDriver

1.准备docker镜像

2.准备minio的secret

3.准备k8s的用户配置

1.签发证书和私钥

2.做kubeconfig配置

3.验证cluster-admin用户

4.创建configmap配置

5.配置运维主机管理k8s集群

6.控制节点config和远程config 对比：（分析）

4.准备资源配置清单

5.应用资源配置清单

6.检查

4.部署数据持久化组件—Front50

1.准备镜像

2.准备资源配置清单

3.应用资源清单

4.檢查：

5.浏览器访问

5.部署任务编排组件–Orca

1.准备docker镜像

2.准备资源配置清单

3.应用资源配置清单

4.檢查：

6.部署消息总线组件–Echo

1.准备镜像

2.准备资源配置清单

3.应用资源配置清单

7.部署流水线交互组件–lgor

1.准备镜像

2.准备资源配置清单

3.应用资源配置清单

8.部署api提供组件–Gate

1.准备镜像

2.准备资源配置清单

3.应用资源配置清单

4.检查

9.部署前端网站项目–Deck

1.准备docker镜像

2.准备资源配置清单

3.应用资源配置清单

10.部署前端代理–Nginx

1.准备docker镜像

2.准备资源配置清单

3.应用资源配置清单

11.域名解析

12.打开浏览器

第五章：使用spinnaker结合jenkins构建镜像

1.使用spinnaker前期准备

2.使用spinnaker创建dubbo

第六章：实战配置、使用Spinnaker配置dubbo服务提供者项目

第七章：实战配置、使用Spinnaker配置dubbo服务消费者项目
